+ Background
  Broad  research  areas  within the  work -package: Collaborative
design and construction
  Visual  management
  Building  information modelling
  Project  management
 Lean construction
 Promise based  management
 Web  services  and  Service  oriented  architecture  (SOA)
  Growing  interest in identifying synergies  between  BIM and lean
construction principles
+ Concept
 A  production  management system that:
 Uses BIM as the visual platform and lean construction principles as the
process  enabler
 Integrates project related information using web services.
 To be used by construction team including  the key  supply  chain
stakeholders
 End user   interface  is the key
 Various user interfaces to assist in  processes  such as
  Reverse  phase scheduling, Lookahead  planning , weekly planning
 Day-to-day  task  management, including project monitoring and
control
  Simple  interfaces to make it suitable  for use on a construction
project
+ Problems with current  situation
 Problems with process and product integration
 Fragmentation is a well  known  problem
 Current systems (ERP, Extranets, Emails, etc) don’t address core
construction processes
 Construction  projects  are  left  to define /use their own systems
(mostly  Excel  spreadsheets,  email  and traditional  communication)
 Product Model
 CAD is still  the predominant model
 BIM is fast  taking over but still mostly at the design level
+ Problem with integration
Full  integration with  other  parties (all  functions  and many  different  entities are
1.3
integrated  with seamless  real -time integration
Full integration (all functions integrated with seamless real-time integration)
12.7
Partial seamless integration ( several  functions integrated with seamless real-
32.9
time integration)
Partial relayed integration (several functions computerized and consolidated in
32.9
certain periods (e.g.  daily , weekly and monthly)
No integration (several standalone computer applications with no integration
17.7
No information system ( manual  business processes and  operation
2.5
Total
100

Source: Tatari et al (2007)
+ What’s  available  currently
 Current products offering construction planning  through  BIM
 Navisworks
 Synchro 4D
  Vico  Constructor
 Tokmo
 The level of integration and planning resolution is extremely
limited
  There  are many different information sources which need to be
synchronised in order to  offer  complete project management
solution
+ Why a new system
 Currently no systems in the  market  that offer such functionality
 Lean production management
 Product and Process model integration
 In practice being successfully exploited by a  select  few, with
manual  intervention
 Sutter health
 DPR
 BIM  offers  a natural visual and central platform
+ Simple Concept  Diagram
Project  Manager  Foreman Task Manager
QS
Project Management Interface
Building Information Model
Web Services
Project
Design
Material
Equipment
Personnel
Scheduling
related
+ The Last Planner System™
Master
Schedule
Select,
Record   performance
Status &
sequence &
( Percent  Plan
Lookahead
size  work
Complete)
forecast
that CAN be
Plan
for  continuous
s
done
improvement
Select,
Make work
Workabl
sequence &
ready  by
Weekly
Perform
Information
size work
screening &
e
that CAN be
Work Plan
Work !
pulling
backlog
done
Select and
Work packages
sequence work
Daily Work
Task
that CAN be
Commitment
s Task
done
s
Task
s
Report  what is
(Ballard, 2000)
Status
and is not being
done

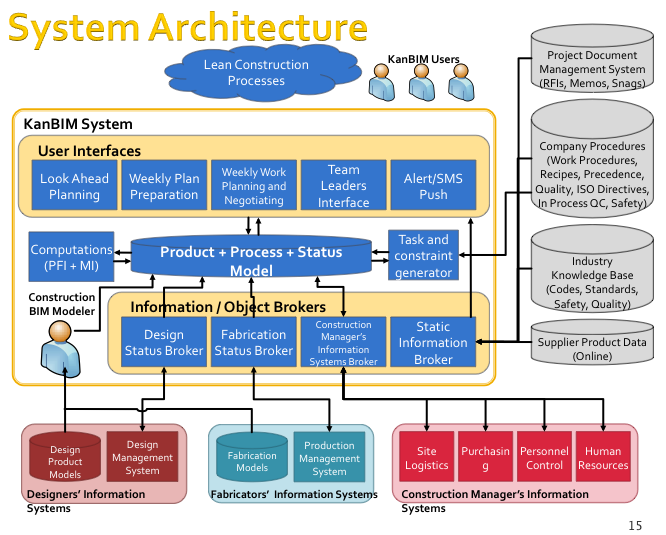

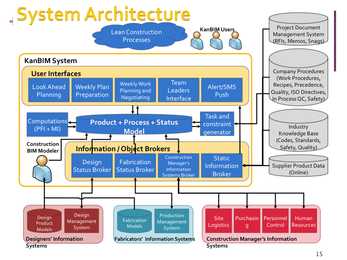

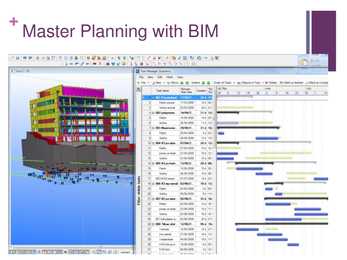

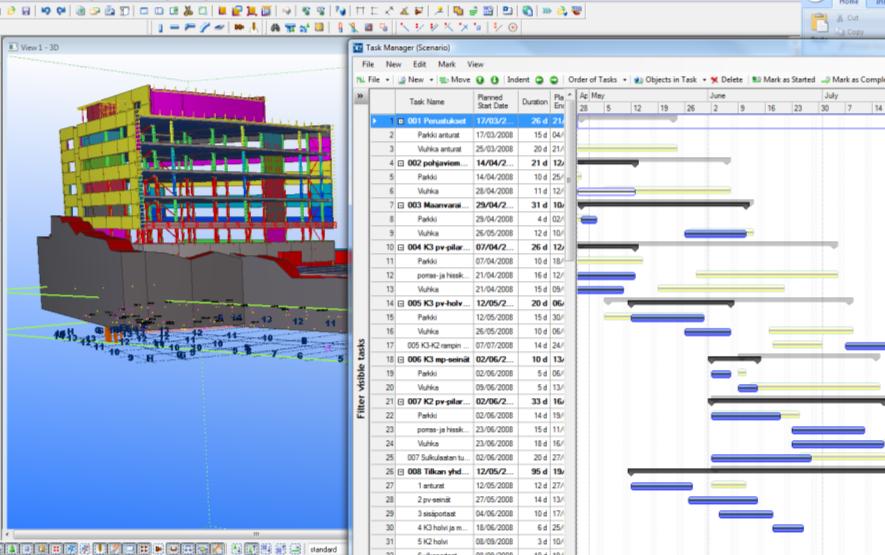

+ Master Planning with BIM
+
User Interfaces

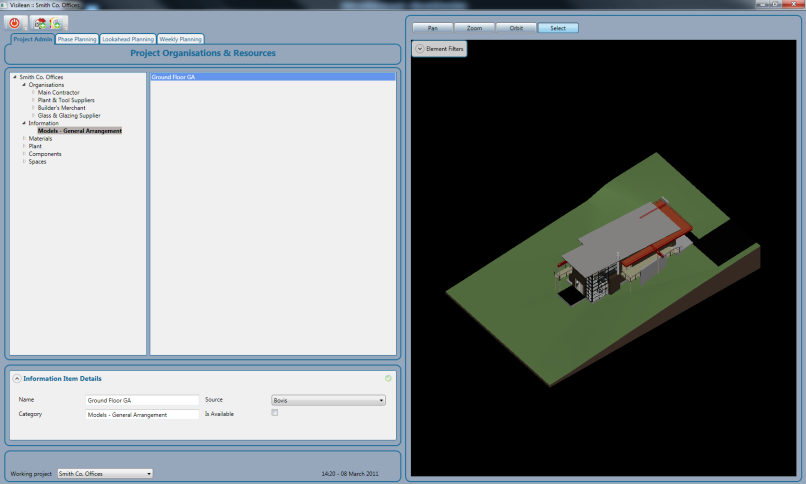

 Project Admin Interface
User Interfaces

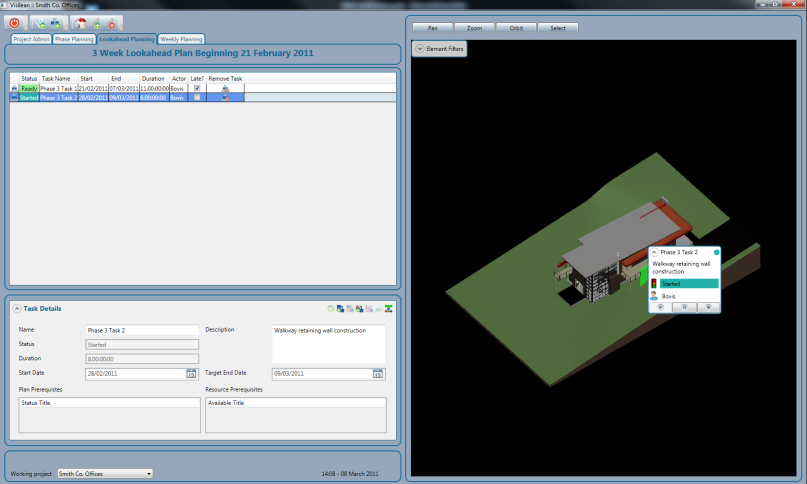

 Collaborative Lookahead Planning Interface
+ Partners
 Salford University, UK ( active  currently)
 Technion University, Israel (active currently)
  Reading  University, UK
 i4DS, Switzerland
 Tekla  Corp , oy
+ Current Status
 Defining the process
 Capturing the  best  practices in the area through  case  studies
 The last planner interface is ready
 Integration with BIM is ready
 Further work including the  development  of end user interfaces
is under way
+ Potential Future Developments
 Integration with other information management systems for
automatic  update of  resource  status
 Project Dashboard
 A  Touch  (screen) based user interface
  Mobile  interface for updating of daily activities  and information
retrieval
 Reports
