W11 Homework Solutions (0)

1 Hindamata
Punktid

Lõik failist


Read Chapter_6_Analog_Outputs.pdf
and Chapter_8_EMI_ElectroMagnetic_Interference.pdf

Question 1

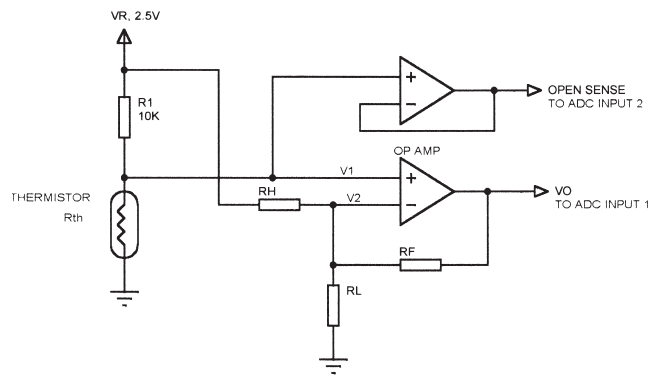

Given  the  below   open   sensor  detection:

a.  Derive equations for  both  outputs VO and Vsense as a  function  of VR, R1,
Rth, RH, RL and RF.
b.  What  value  will appear on each output if the thermistor fails (becomes an
open  circuit )?
c.  How can the  above  schem be  modified  to implement temperature reading
with open sensor detection using only one ADC and one  digital  input pin
of the microcontroller?


Solution:

a.  Derive equations for both outputs as a function of VR, R1, Rth, RH, RL
and RF.
 R

Writing the equation for
th
 V
 

1
1
Vasakule Paremale
W11 Homework Solutions #1 W11 Homework Solutions #2 W11 Homework Solutions #3 W11 Homework Solutions #4
Punktid 50 punkti Autor soovib selle materjali allalaadimise eest saada 50 punkti.
Leheküljed ~ 4 lehte Lehekülgede arv dokumendis
Aeg2015-05-11 Kuupäev, millal dokument üles laeti
Allalaadimisi 9 laadimist Kokku alla laetud
Kommentaarid 0 arvamust Teiste kasutajate poolt lisatud kommentaarid
Autor wyoming Õppematerjali autor
Õppejõu enda lahendus Kodutöö 6 kohta.
