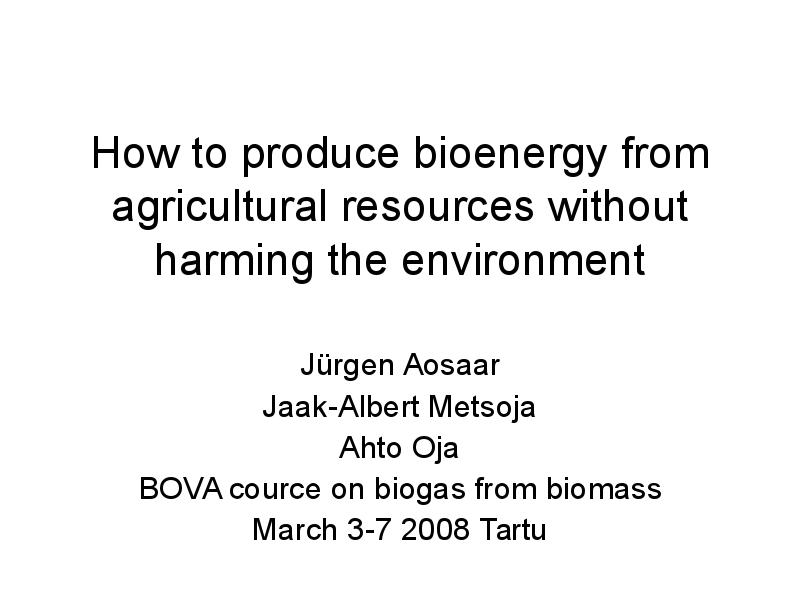

How to produce bioenergy from
agricultural resources  without
harming the environment
Jürgen Aosaar
Jaak- Albert  Metsoja
Ahto  Oja
BOVA  cource on biogas from  biomass
March 3-7 2008 Tartu

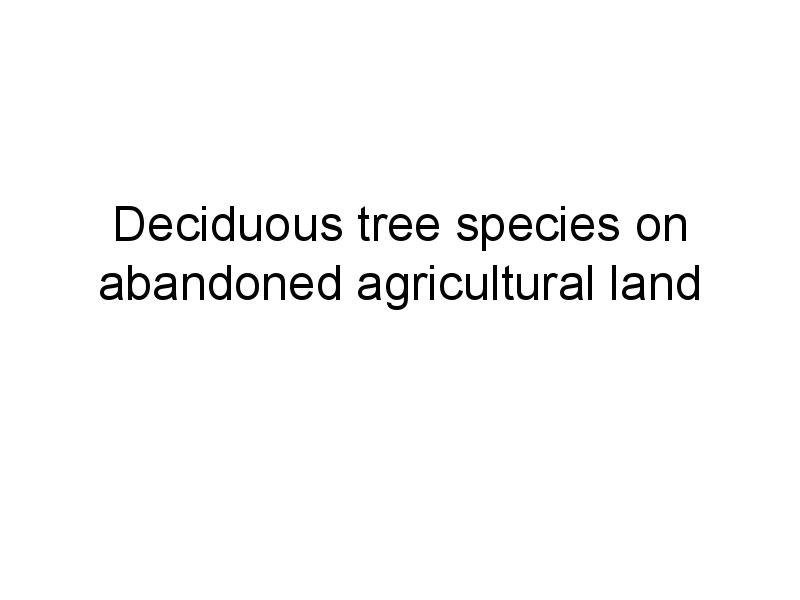

Deciduous tree species  on
abandoned agricultural land

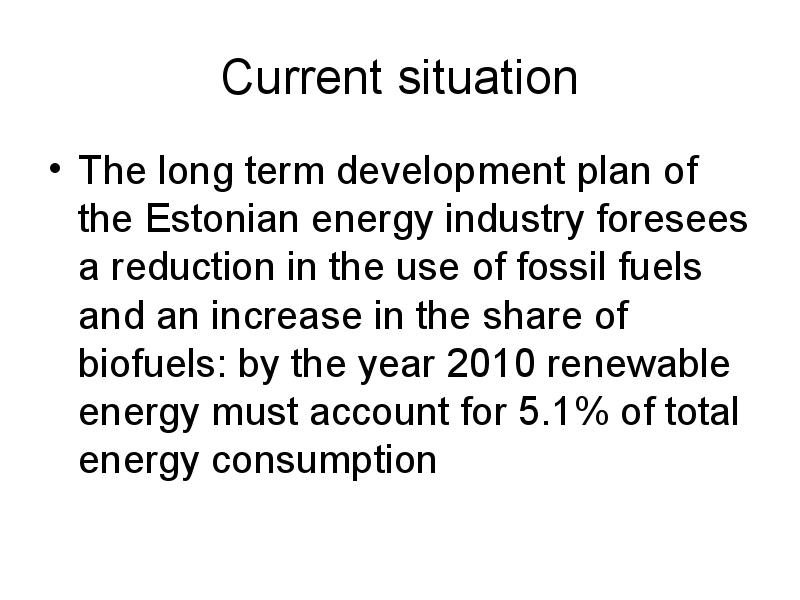

Current situation
• The long term  development  plan of
the Estonian energy industry foresees
reduction in the use of fossil fuels
and an  increase in the  share  of
biofuels: by the  year  2010 renewable
energy must account for 5.1% of  total
energy  consumption

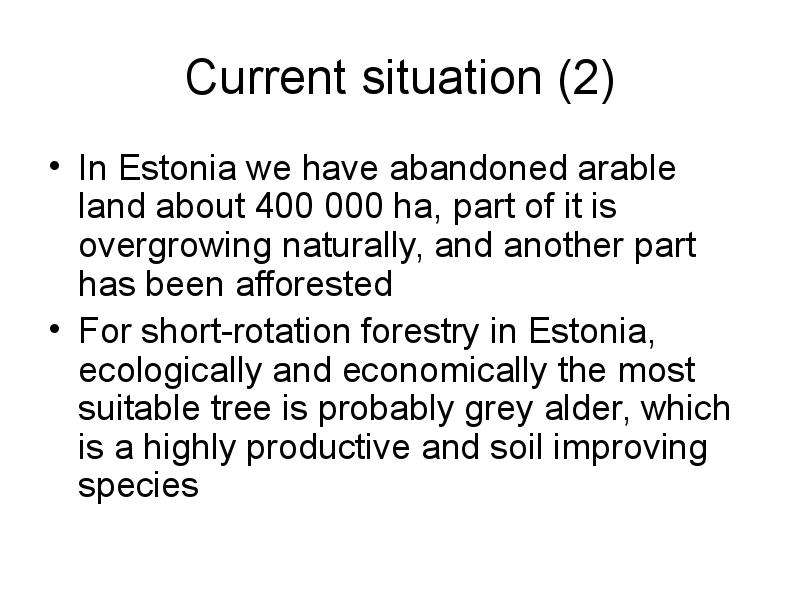

Current situation (2)
• In Estonia we have abandoned arable
land about 400 000 ha, part of it is
overgrowing naturally, and  another  part
has been afforested
• For short-rotation forestry  in Estonia,
ecologically and economically the most
suitable tree is probably grey alder , which
is a highly productive and  soil  improving
species

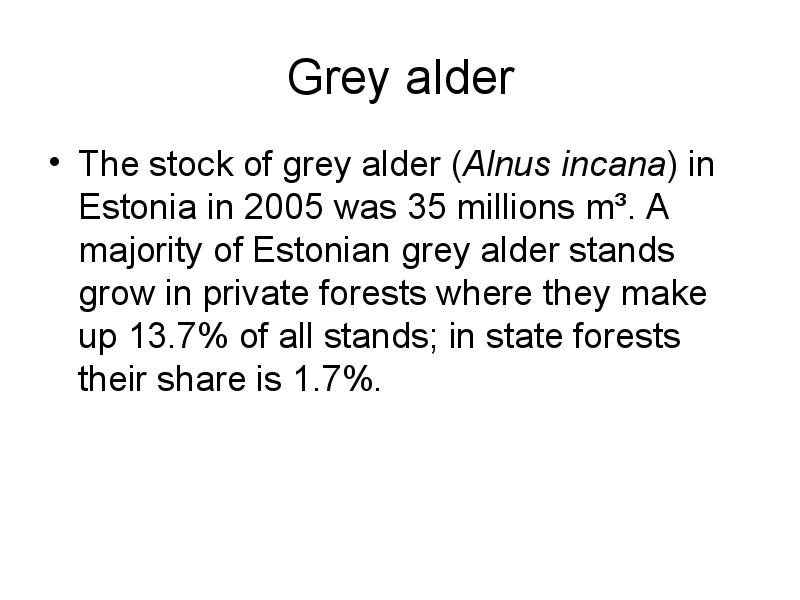

Grey alder
• The stock  of grey alder (Alnus  incana ) in
Estonia in 2005 was 35  millions  m³. A
majority of Estonian grey alder  stands
grow  in private  forests  where they make
up 13.7% of all stands; in state forests
their share is 1.7%.

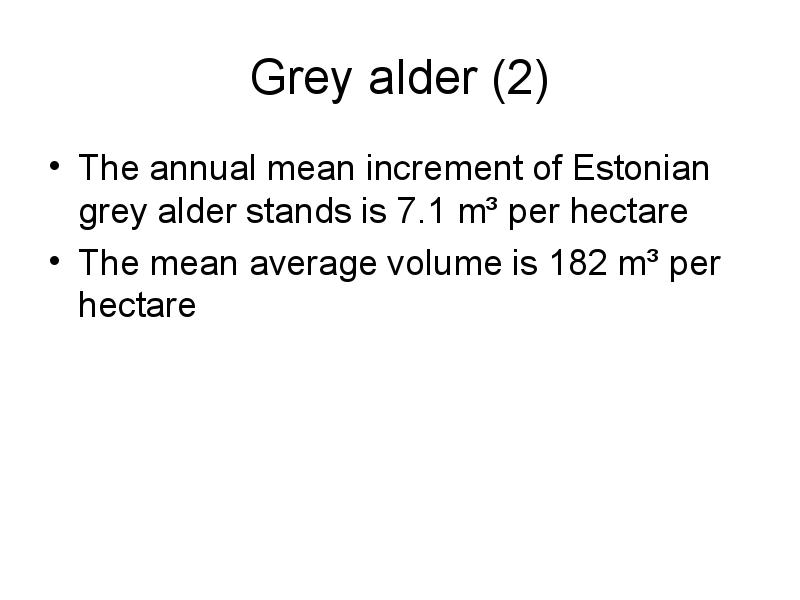

Grey alder (2)
• The annual mean  increment of Estonian
grey alder stands is 7.1 m³ per hectare
• The mean average volume  is 182 m³ per
hectare

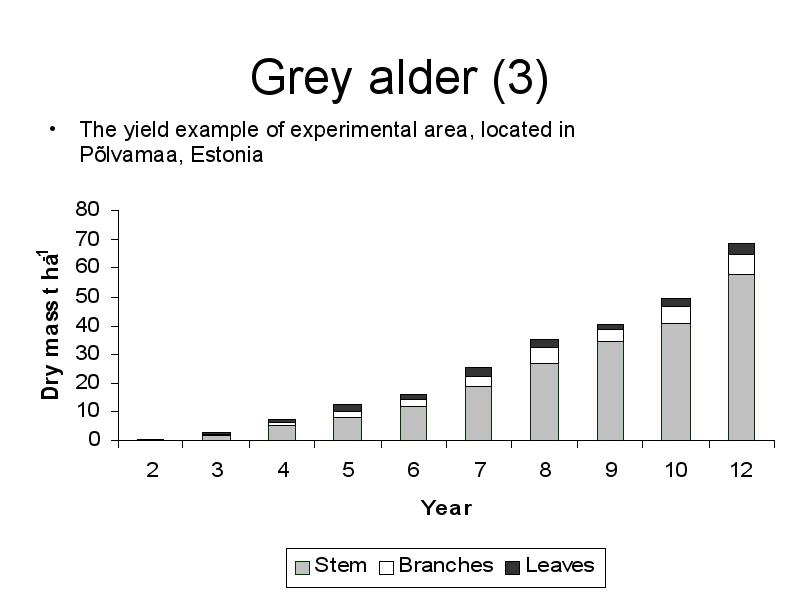

Grey alder (3)
• The  yield  example of experimental area,  located  in
Põlvamaa, Estonia
80
70
-1 a 60
50
ss t h
40
30
ry m 20
10
0
2
3
4
5
6
7
8
9
10
12
Year

Stem
Branches   Leaves

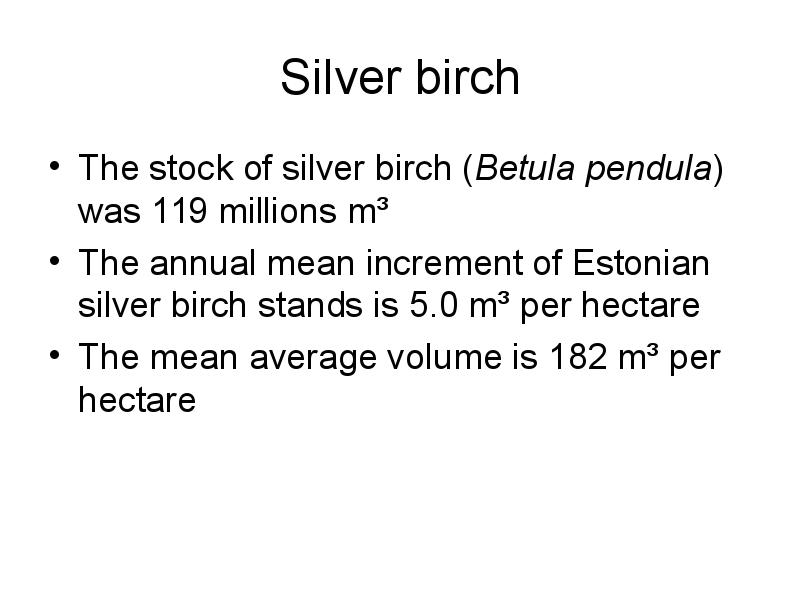

Silver   birch
• The stock of silver birch (Betula  pendula
was 119 millions m³
• The annual mean increment of Estonian
silver birch stands is 5.0 m³ per hectare
• The mean average volume is 182 m³ per
hectare

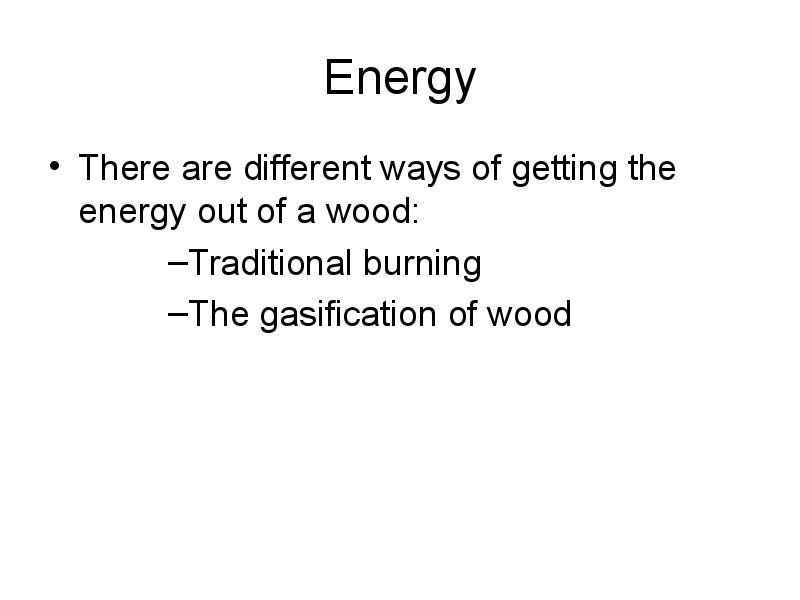

Energy
•  There  are  different ways of  getting  the
energy out of a  wood
–Traditional  burning
–The gasification of wood

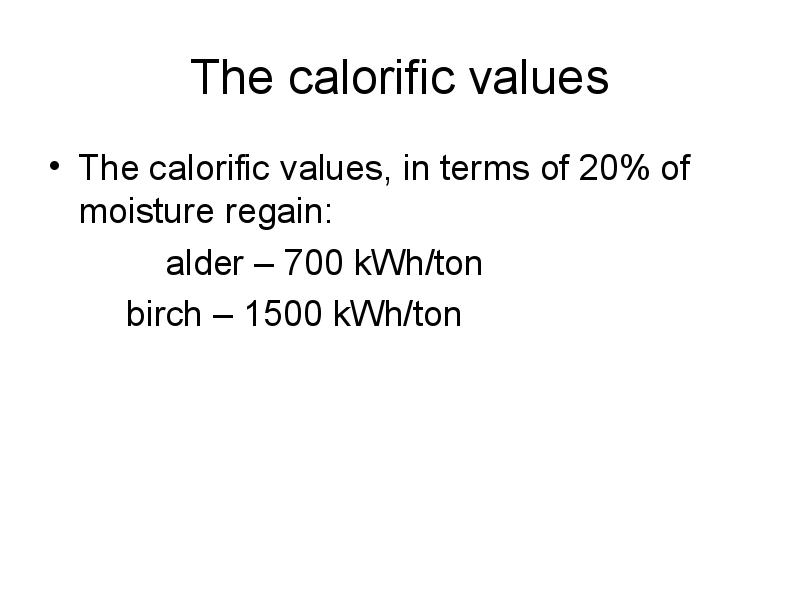

The calorific values
• The calorific values, in  terms  of 20% of
moisture regain:
alder – 700 kWh/ton
birch – 1500 kWh/ton

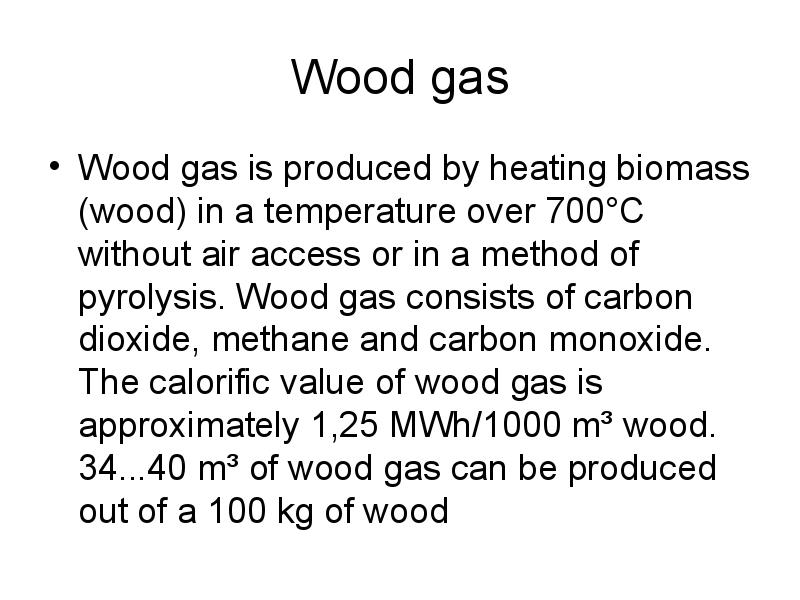

Wood gas
• Wood gas is produced by heating biomass
(wood) in a temperature over 700°C
without air  access  or in a method of
pyrolysis. Wood gas  consists of carbon
dioxide, methane and carbon monoxide.
The calorific value of wood gas is
approximately 1,25 MWh/1000 m³ wood.
34...40 m³ of wood gas can be produced
out of a 100 kg of wood

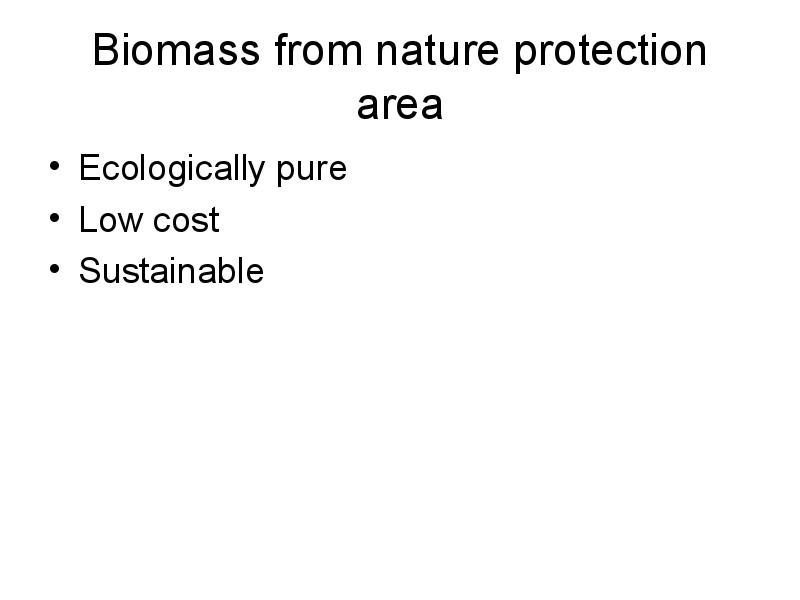

Biomass from  nature   protection
area
• Ecologically pure
• Low  cost
•  Sustainable

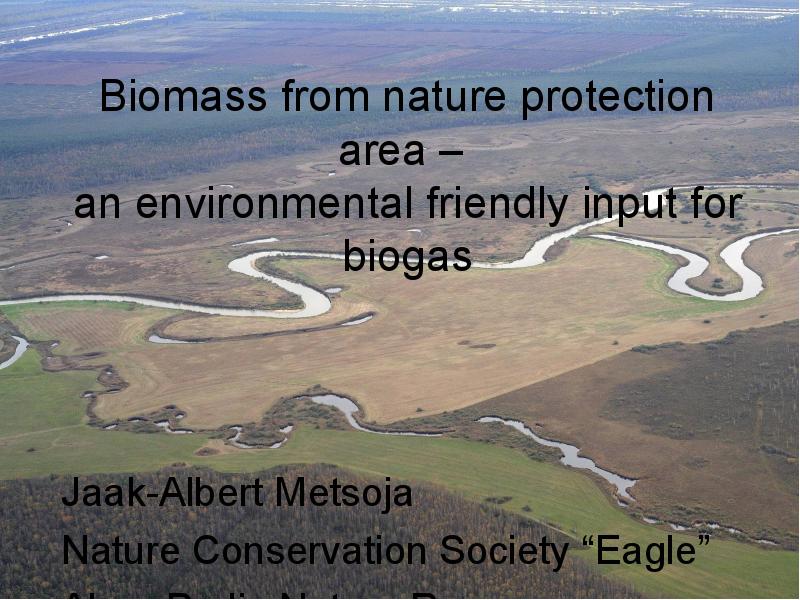

Biomass from nature protection
area –
an environmental  friendly  input for
biogas
Jaak-Albert Metsoja
Nature Conservation Society “Eagle”

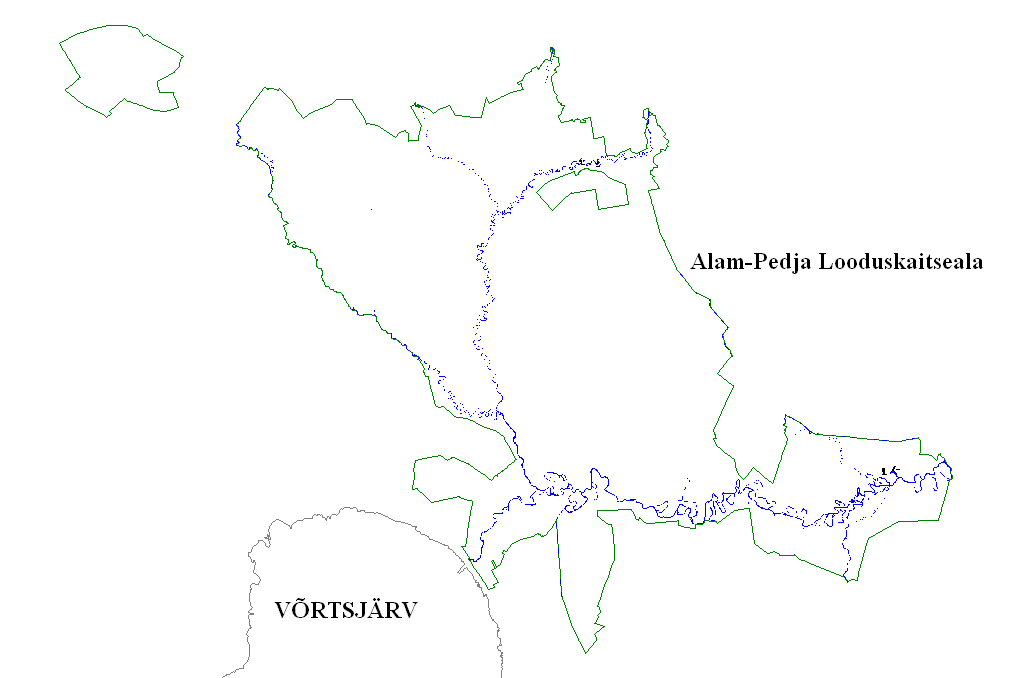

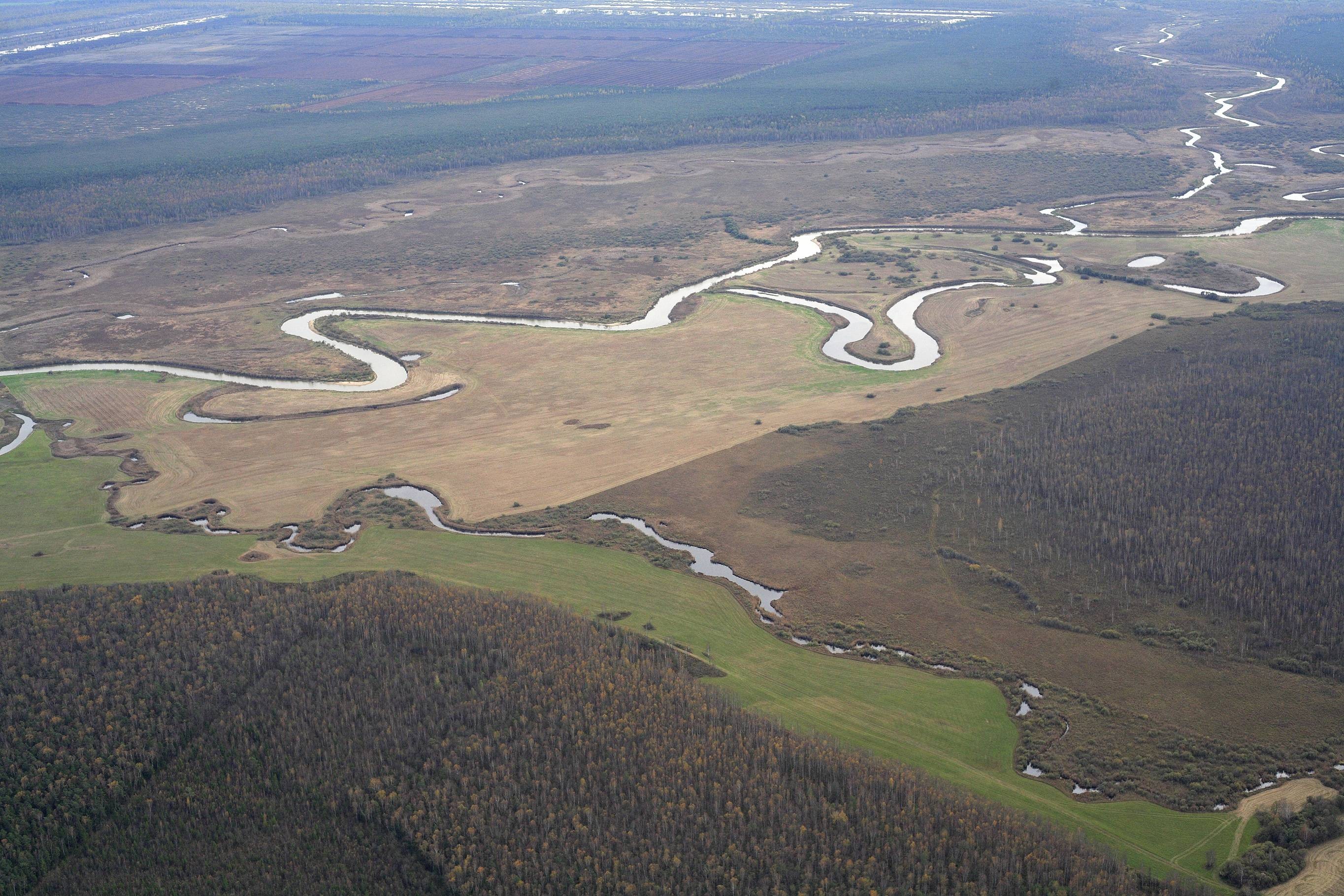

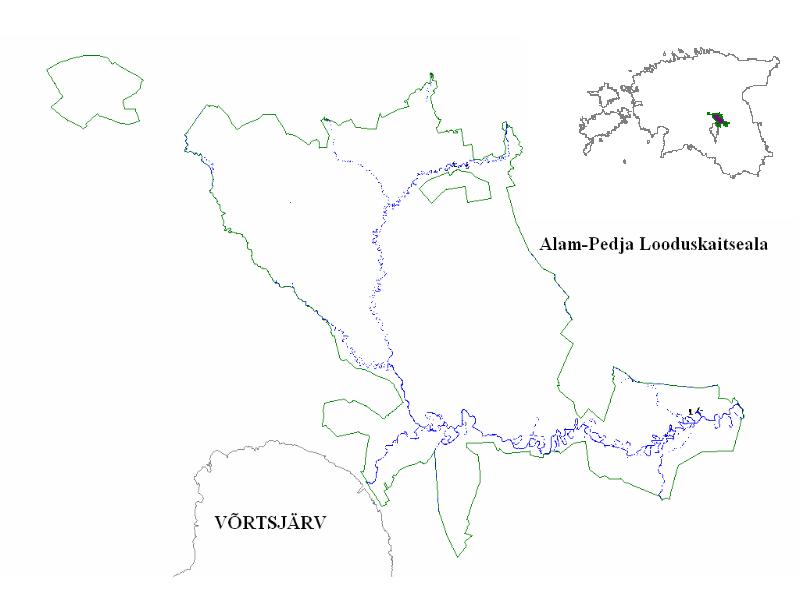

Alam-Pedja Nature Reserve

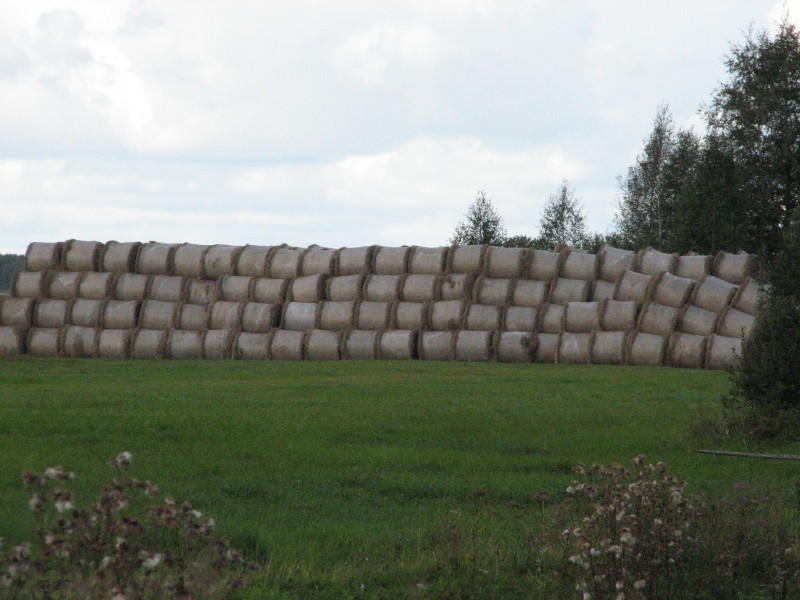

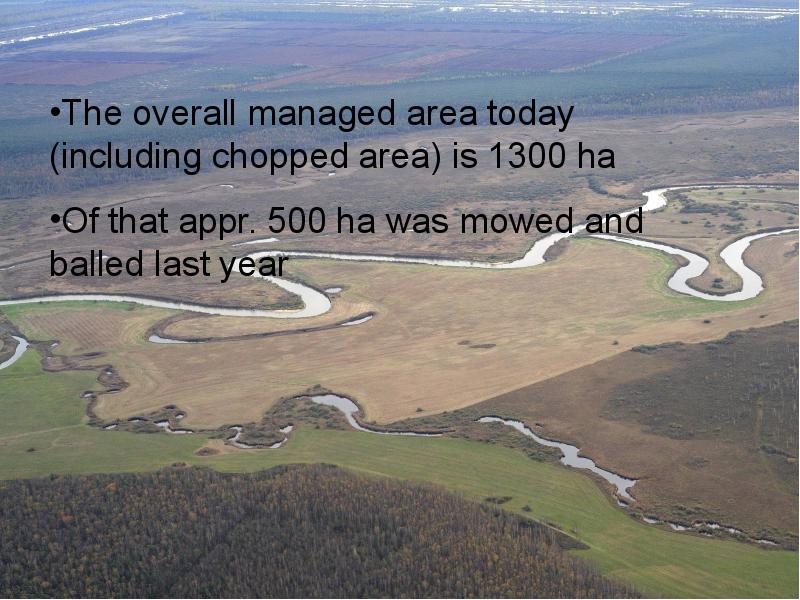

•The  overall managed area today
( including  chopped area) is 1300 ha
•Of that appr. 500 ha was mowed and
balled last year

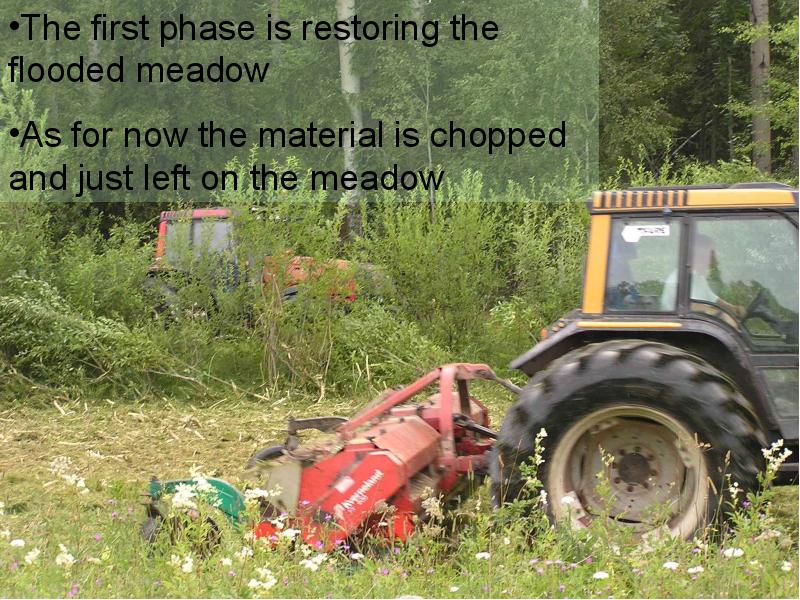

•The  first phase is restoring the
flooded meadow

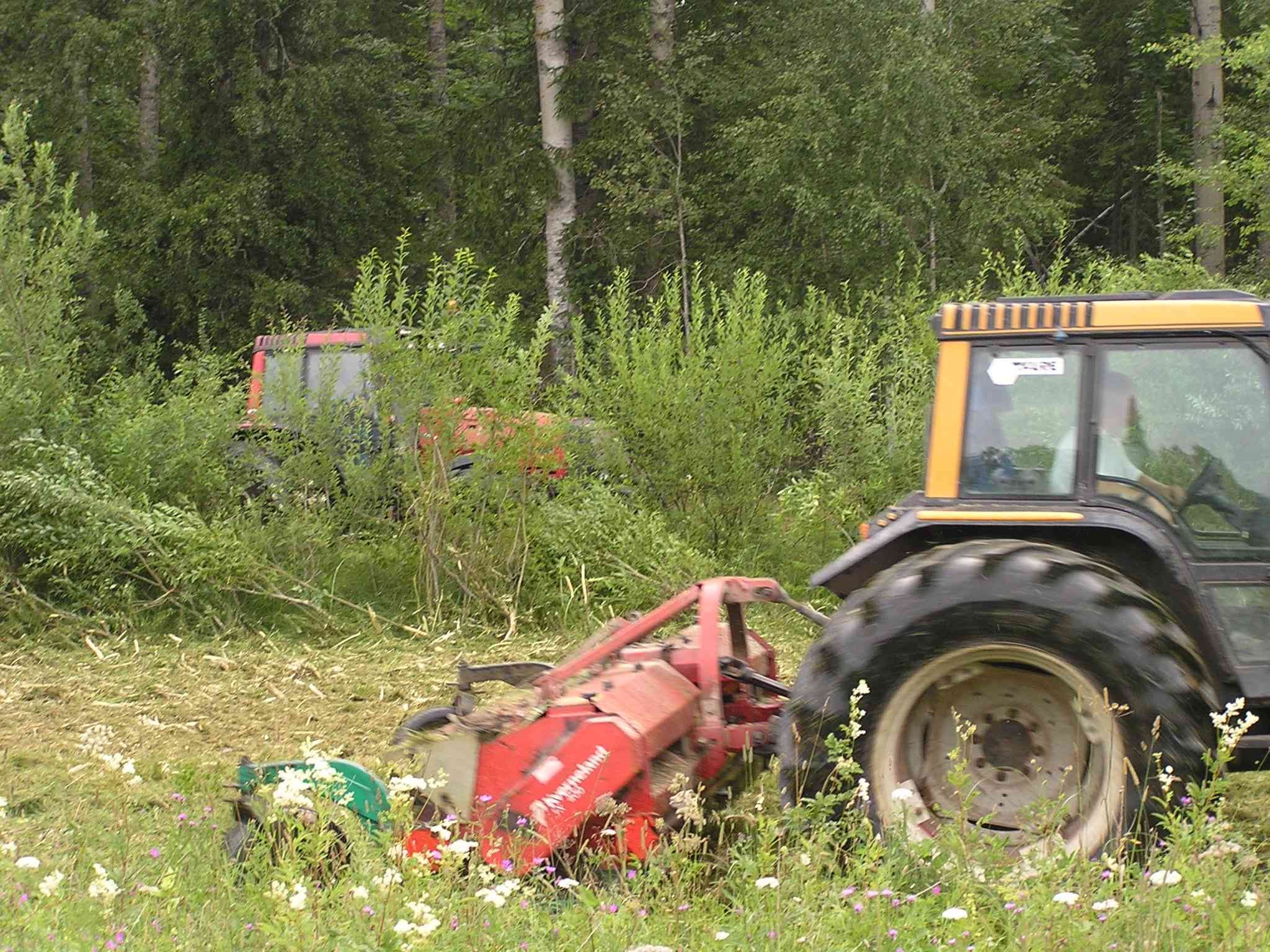

•As for now the material  is chopped
and just left on the meadow

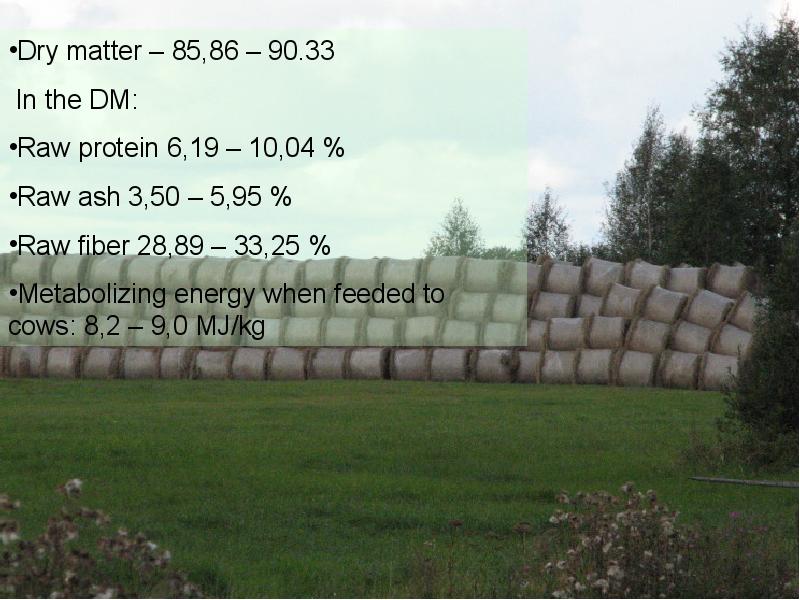

•Dry  matter  – 85,86 – 90.33
 In the DM:
•Raw  protein  6,19 – 10,04 %
•Raw ash 3,50 – 5,95 %
•Raw  fiber  28,89 – 33,25 %
•Metabolizing energy when feeded to
cows: 8,2 – 9,0 MJ/kg

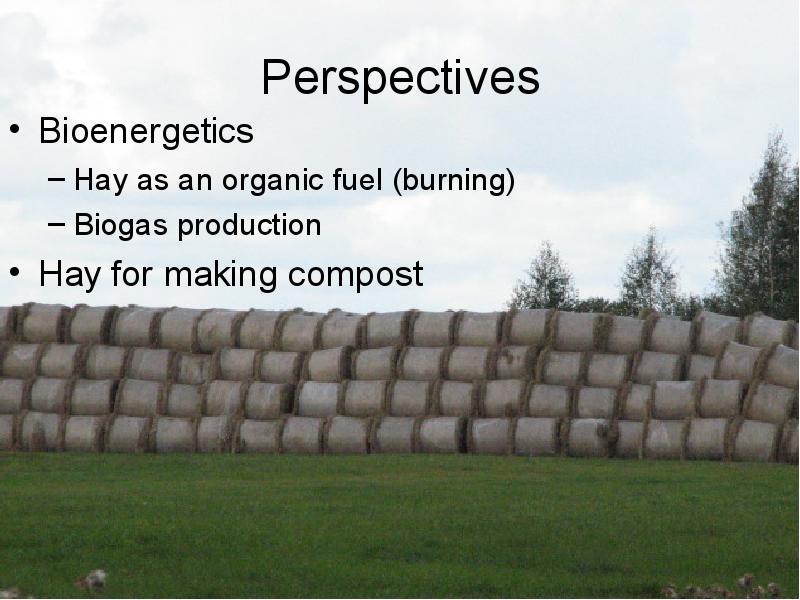

Perspectives
• Bioenergetics
– Hay as an  organic  fuel (burning)
– Biogas  production
• Hay for  making  compost

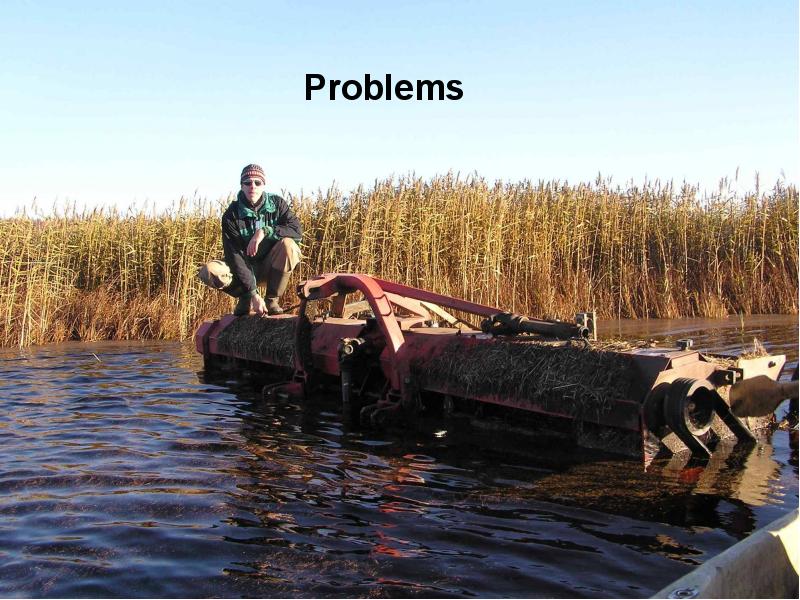

Problems

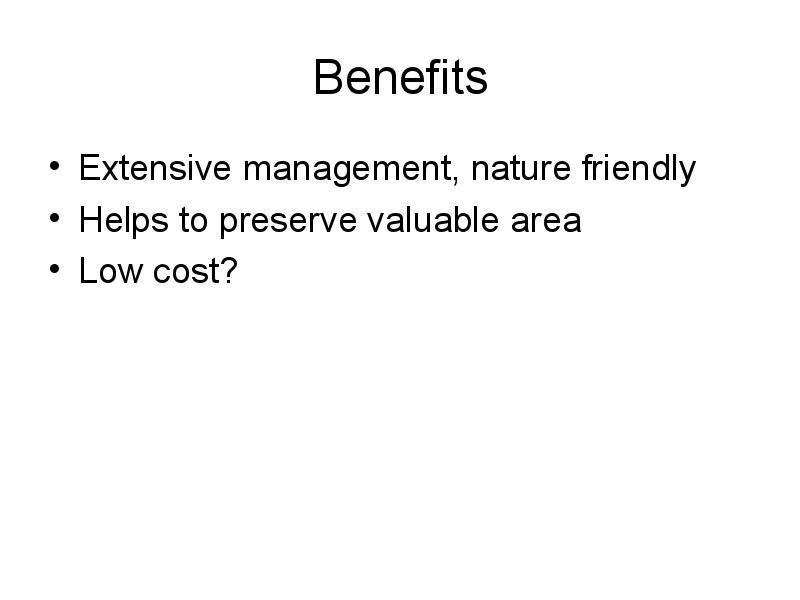

Benefits
• Extensive  management , nature friendly
• Helps to preserve  valuable area
• Low cost?

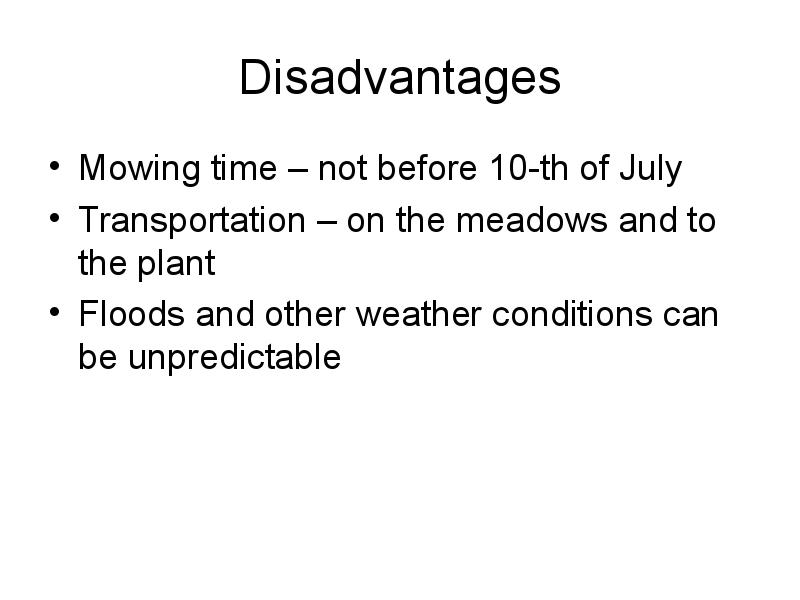

Disadvantages
• Mowing time – not before 10-th of July
• Transportation – on the meadows and to
the  plant
• Floods and  other weather  conditions can
be unpredictable

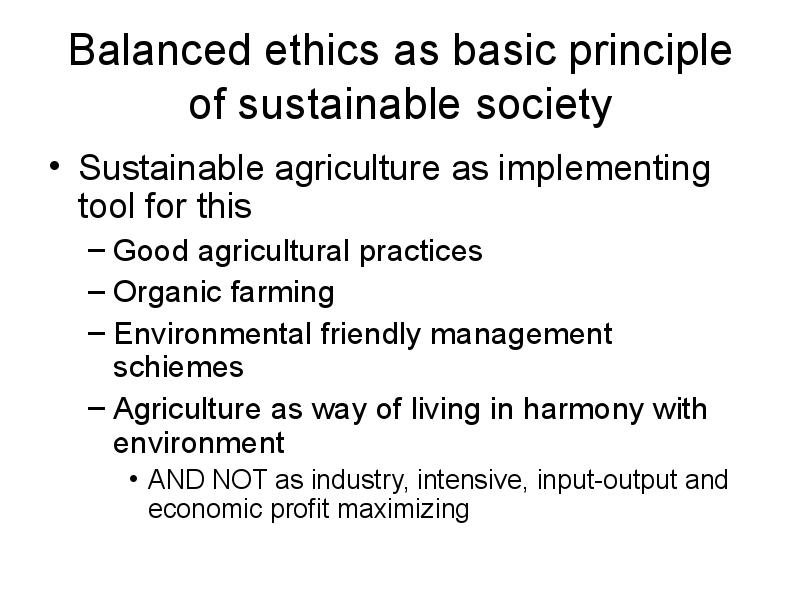

Balanced ethics as basic principle
of sustainable society
• Sustainable  agriculture as implementing
tool  for this
–  Good  agricultural practices
– Organic farming
– Environmental friendly management
schiemes
– Agriculture as way of  living  in harmony with
environment
• AND NOT as industry, intensive, input-output and
economic  profit maximizing

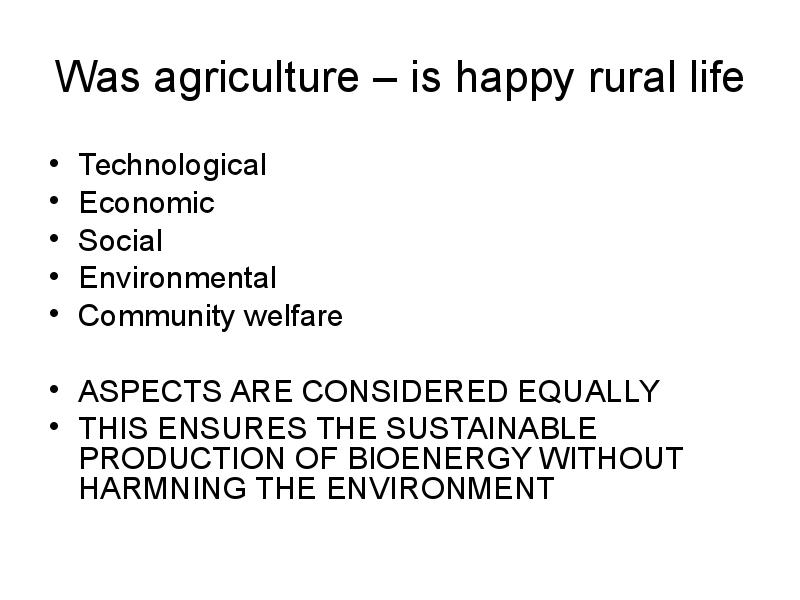

Was agriculture – is happy rural  life
•  Technological
• Economic
•  Social
• Environmental
• Community welfare
• ASPECTS ARE  CONSIDERED  EQUALLY
• THIS ENSURES THE SUSTAINABLE
PRODUCTION OF BIOENERGY WITHOUT
HARMNING THE ENVIRONMENT

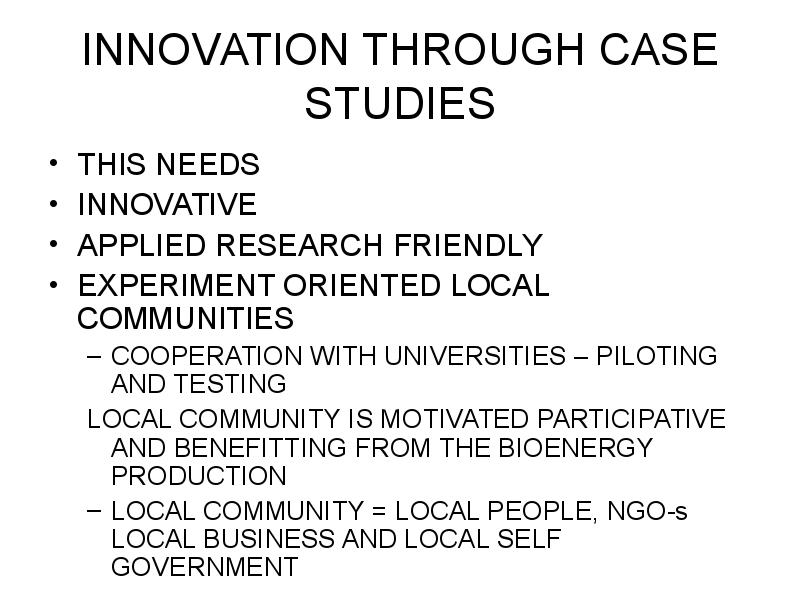

INNOVATION  THROUGH  CASE
STUDIES
• THIS  NEEDS
• INNOVATIVE
• APPLIED RESEARCH FRIENDLY
• EXPERIMENT ORIENTED  LOCAL
COMMUNITIES
– COOPERATION WITH UNIVERSITIES – PILOTING
AND  TESTING
LOCAL COMMUNITY IS MOTIVATED PARTICIPATIVE
AND BENEFITTING FROM THE BIOENERGY
PRODUCTION
– LOCAL COMMUNITY = LOCAL PEOPLE, NGO-s
LOCAL BUSINESS AND LOCAL SELF


GOVERNMENT

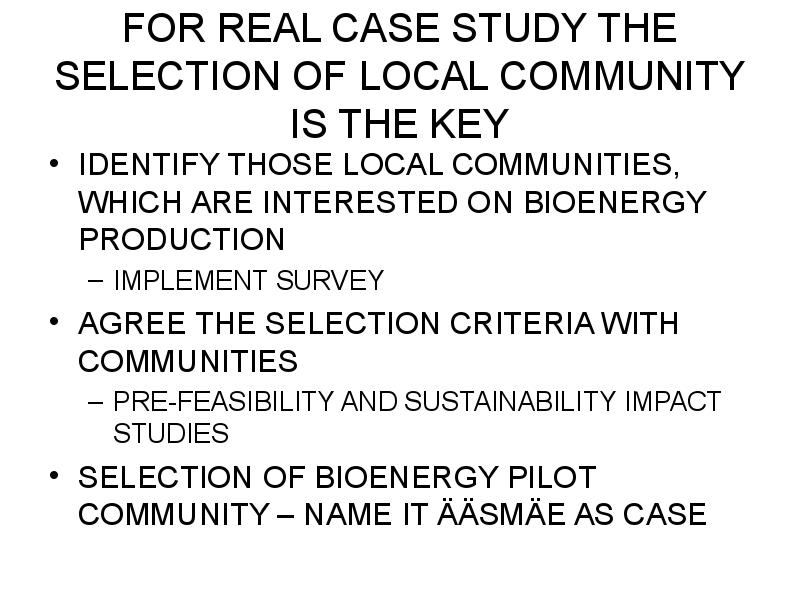

FOR  REAL  CASE  STUDY  THE
SELECTION OF LOCAL COMMUNITY
IS THE KEY
• IDENTIFY THOSE LOCAL COMMUNITIES,
WHICH ARE INTERESTED ON BIOENERGY
PRODUCTION
– IMPLEMENT  SURVEY
• AGREE THE SELECTION CRITERIA WITH
COMMUNITIES
– PRE-FEASIBILITY AND SUSTAINABILITY IMPACT
STUDIES
• SELECTION OF BIOENERGY PILOT
COMMUNITY – NAME IT ÄÄSMÄE AS CASE

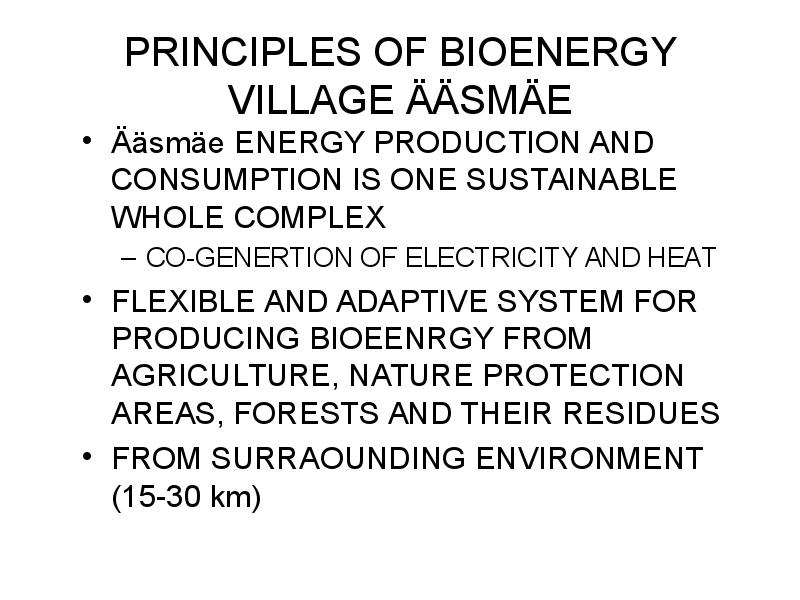

PRINCIPLES OF BIOENERGY
VILLAGE ÄÄSMÄE
• Ääsmäe ENERGY PRODUCTION AND
CONSUMPTION IS ONE SUSTAINABLE
WHOLE  COMPLEX
– CO-GENERTION OF ELECTRICITY AND  HEAT
• FLEXIBLE AND  ADAPTIVE  SYSTEM FOR
PRODUCING BIOEENRGY FROM
AGRICULTURE, NATURE PROTECTION
AREAS , FORESTS AND THEIR RESIDUES
• FROM SURRAOUNDING ENVIRONMENT
(15-30 km)

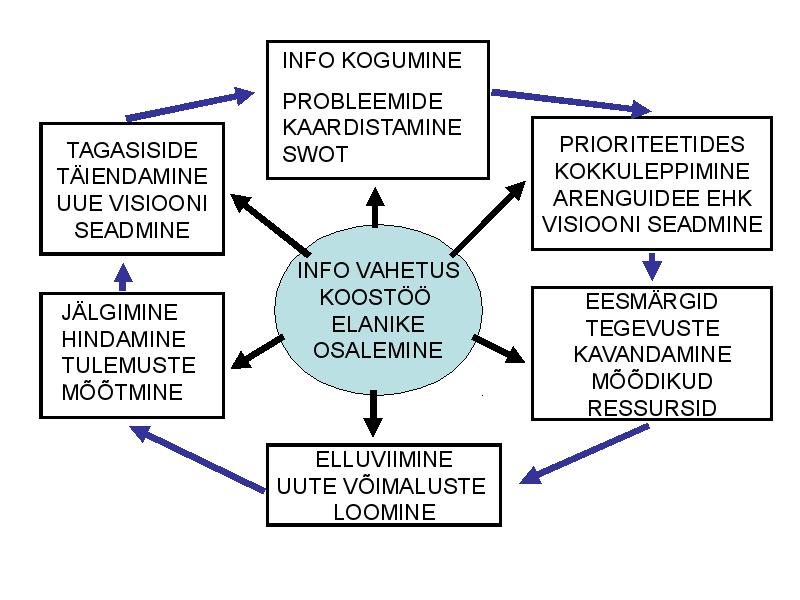

INFO KOGUMINE
PROBLEEMIDE
KAARDISTAMINE
TAGASISIDE
SWOT
PRIORITEETIDES
KOKKULEPPIMINE
TÄIENDAMINE
ARENGUIDEE EHK
UUE VISIOONI
VISIOONI  SEADMINE
SEADMINE
INFO VAHETUS
KOOSTÖÖ
EESMÄRGID
JÄLGIMINE
ELANIKE
TEGEVUSTE
HINDAMINE
OSALEMINE
KAVANDAMINE
TULEMUSTE
MÕÕDIKUD
MÕÕTMINE
RESSURSID
ELLUVIIMINE
UUTE VÕIMALUSTE
LOOMINE

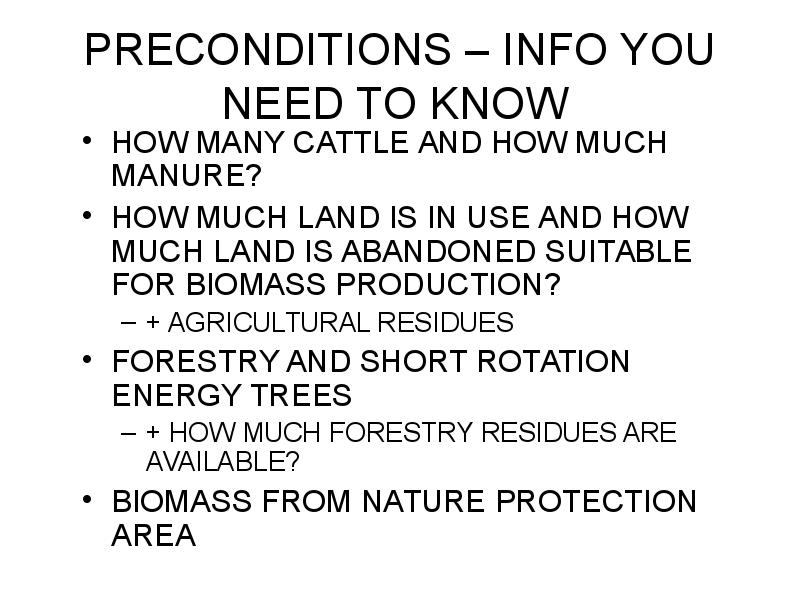

PRECONDITIONS – INFO YOU
NEED TO  KNOW
• HOW MANY  CATTLE  AND HOW MUCH
MANURE?
• HOW MUCH LAND IS IN USE AND HOW
MUCH LAND IS ABANDONED SUITABLE
FOR BIOMASS PRODUCTION?
– + AGRICULTURAL RESIDUES
• FORESTRY AND SHORT ROTATION
ENERGY TREES
– + HOW MUCH FORESTRY RESIDUES ARE
AVAILABLE ?
• BIOMASS FROM NATURE PROTECTION
AREA

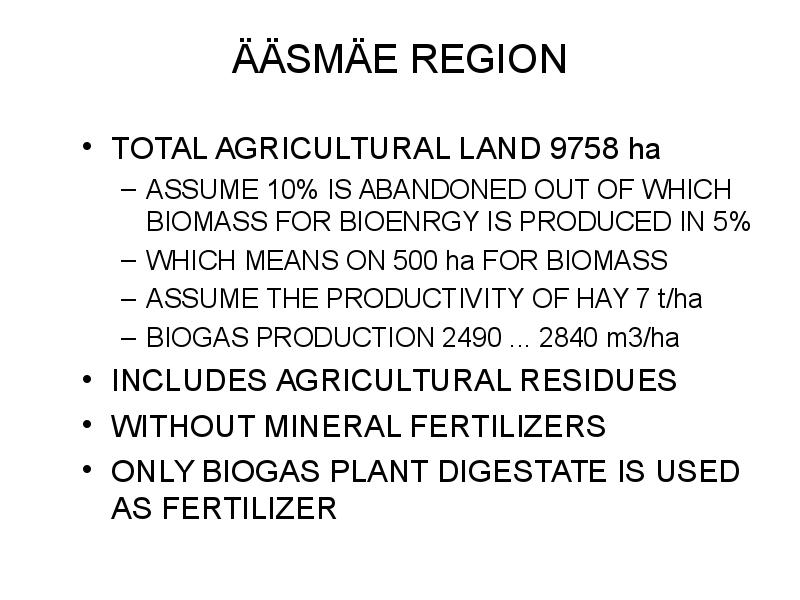

ÄÄSMÄE  REGION
• TOTAL AGRICULTURAL LAND 9758 ha
– ASSUME 10% IS ABANDONED OUT OF WHICH
BIOMASS FOR BIOENRGY IS PRODUCED IN 5%
– WHICH  MEANS  ON 500 ha FOR BIOMASS
– ASSUME THE PRODUCTIVITY OF HAY 7 t/ha
– BIOGAS PRODUCTION 2490 ... 2840 m3/ha
• INCLUDES AGRICULTURAL RESIDUES
• WITHOUT  MINERAL  FERTILIZERS
• ONLY BIOGAS PLANT DIGESTATE IS USED
AS FERTILIZER

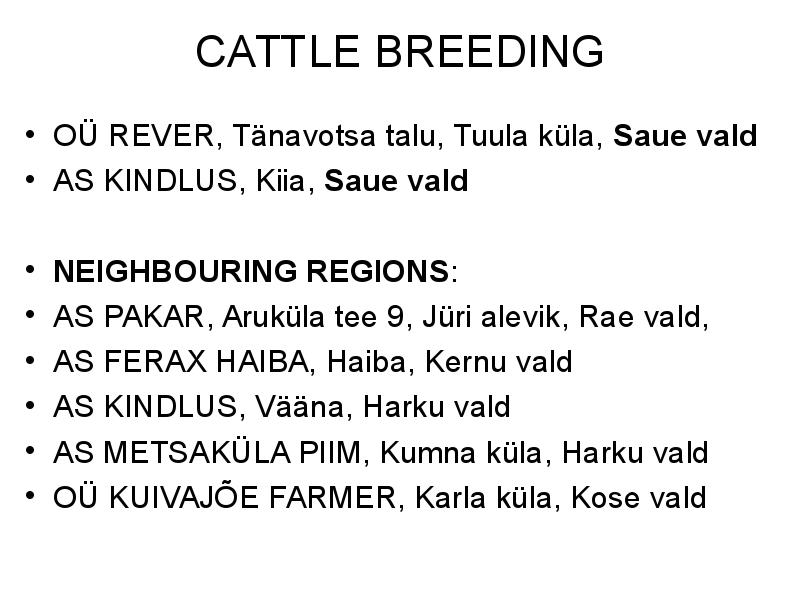

CATTLE BREEDING
• OÜ  REVER , Tänavotsa talu, Tuula küla, Saue vald
• AS  KINDLUS , Ki a, Saue vald
• NEIGHBOURING  REGIONS :
• AS PAKAR, Aruküla tee 9, Jüri alevik, Rae vald,
• AS FERAX HAIBA, Haiba,  Kernu  vald
• AS KINDLUS, Vääna, Harku vald
• AS METSAKÜLA PIIM, Kumna küla, Harku vald
• OÜ KUIVAJÕE FARMER,  Karla  küla,  Kose  vald

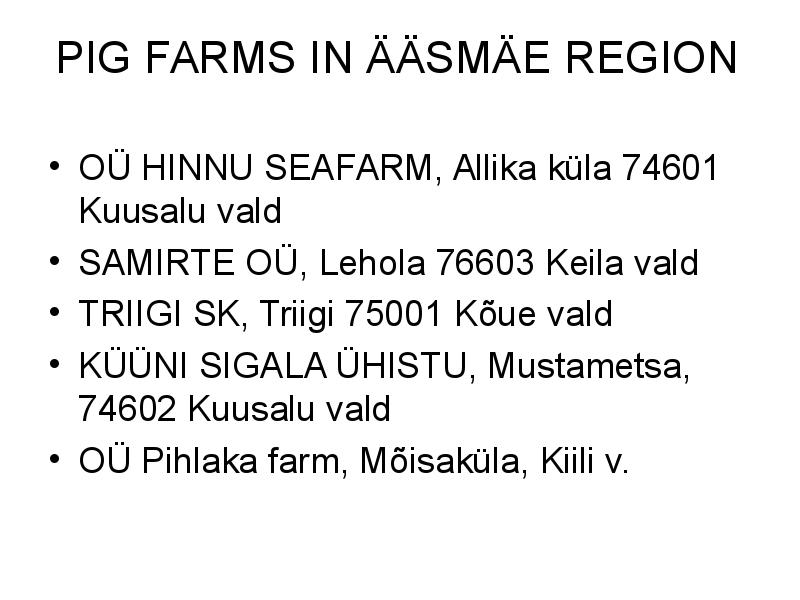

PIG FARMS IN ÄÄSMÄE REGION
• OÜ HINNU SEAFARM, Allika küla 74601
Kuusalu vald
• SAMIRTE OÜ, Lehola  76603  Keila  vald
• TRIIGI SK, Triigi 75001 Kõue vald
• KÜÜNI  SIGALA  ÜHISTU, Mustametsa,
74602 Kuusalu vald
• OÜ Pihlaka farm, Mõisaküla, Kiili v.

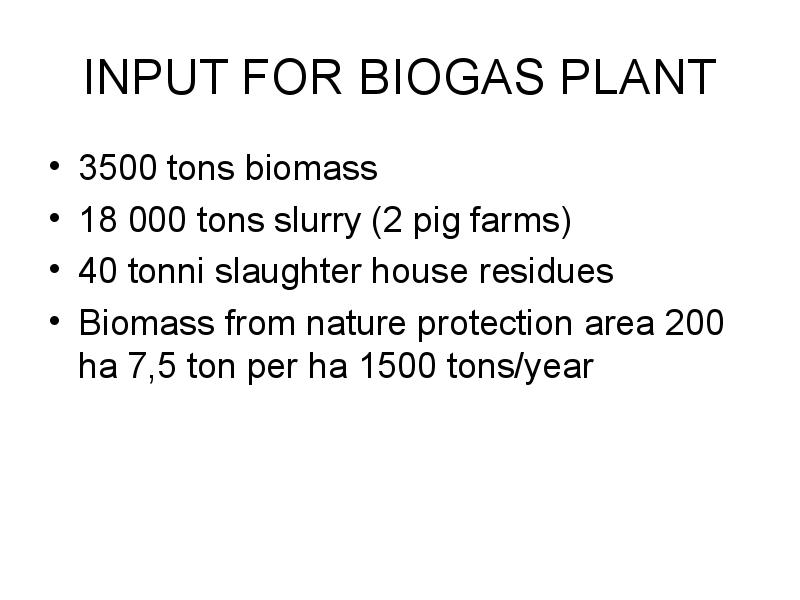

INPUT FOR BIOGAS PLANT
•  3500  tons biomass
• 18 000 tons slurry (2 pig farms)
• 40 tonni slaughter house residues
• Biomass from nature protection area 200
ha 7,5 ton per ha 1500 tons/year

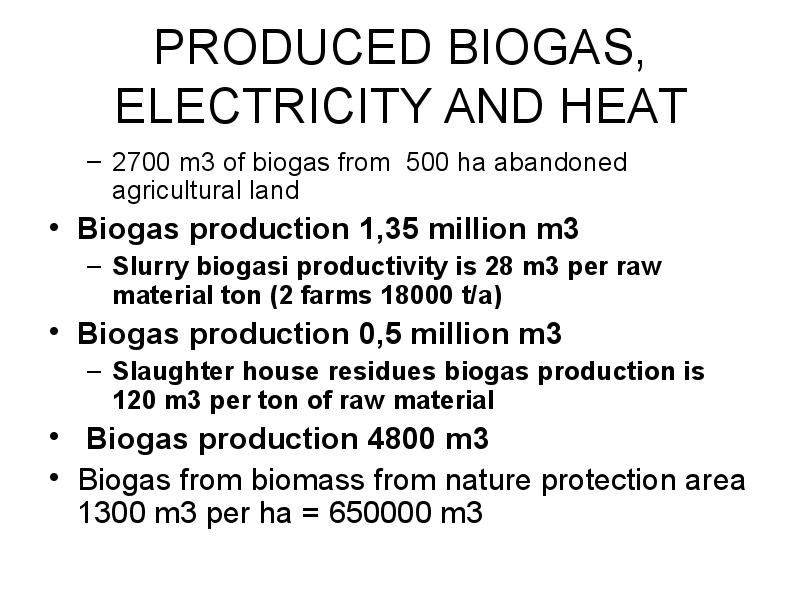

PRODUCED BIOGAS,
ELECTRICITY AND HEAT
– 2700 m3 of biogas from  500 ha abandoned
agricultural land
• Biogas production 1,35 million m3
– Slurry biogasi productivity is 28 m3 per raw
material ton (2 farms 18000 t/a)
• Biogas production 0,5 million m3
– Slaughter house residues biogas production is
120 m3 per ton of raw material
•  Biogas production 4800 m3
• Biogas from biomass from nature protection area
1300 m3 per ha = 650000 m3

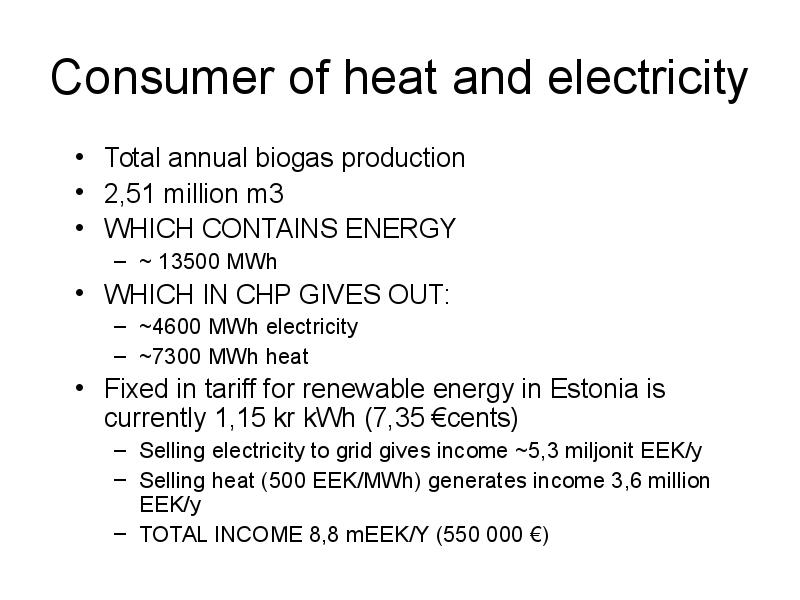

Consumer of heat and electricity
• Total annual biogas production
• 2,51 mil ion m3
• WHICH CONTAINS ENERGY
– ~ 13500 MWh
• WHICH IN CHP GIVES OUT:
– ~4600 MWh electricity
– ~7300 MWh heat
• Fixed in tariff for renewable energy in Estonia is
currently 1,15 kr kWh (7,35 €cents)
– Sel ing electricity to grid gives income ~5,3 miljonit EEK/y
– Sel ing heat (500 EEK/MWh) generates income 3,6 mil ion
EEK/y
– TOTAL INCOME 8,8 mEEK/Y (550 000 €)

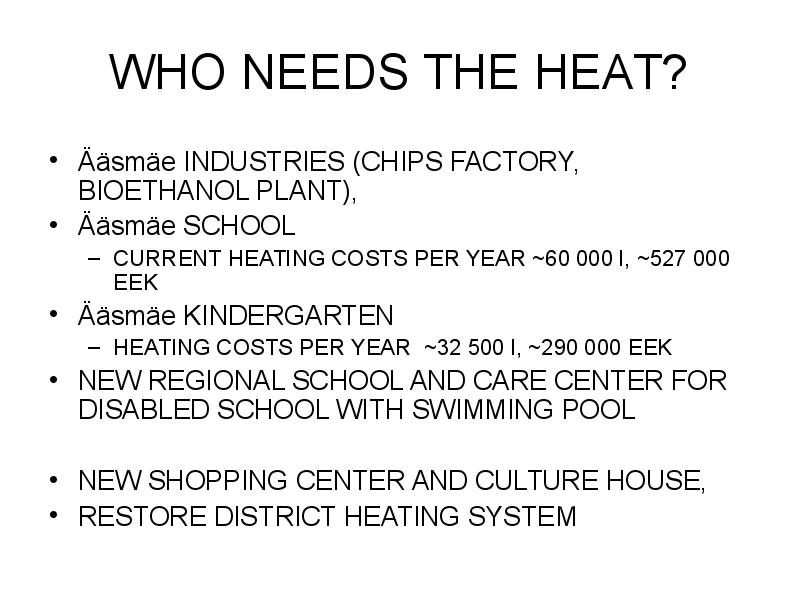

WHO NEEDS THE HEAT?
• Ääsmäe INDUSTRIES (CHIPS  FACTORY
BIOETHANOL PLANT),
• Ääsmäe SCHOOL
– CURRENT HEATING COSTS PER YEAR ~60 000 l, ~527 000
EEK
• Ääsmäe KINDERGARTEN
– HEATING COSTS PER YEAR  ~32 500 l, ~290 000 EEK
• NEW REGIONAL SCHOOL AND CARE CENTER FOR
DISABLED SCHOOL WITH SWIMMING POOL
• NEW  SHOPPING  CENTER AND CULTURE HOUSE,
•  RESTORE  DISTRICT HEATING SYSTEM

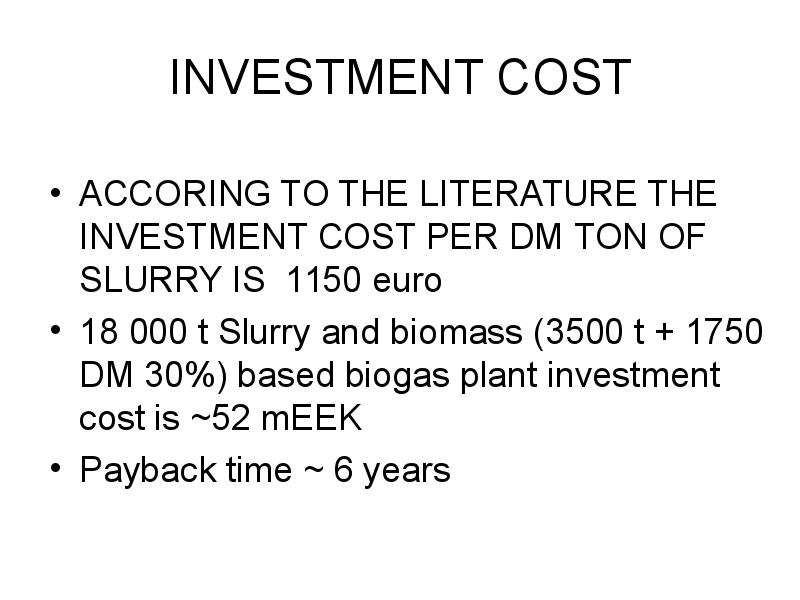

INVESTMENT COST
• ACCORING TO THE LITERATURE  THE
INVESTMENT COST PER DM TON OF
SLURRY IS  1150 euro
• 18 000 t Slurry and biomass (3500 t + 1750
DM 30%) based  biogas plant investment
cost is ~52 mEEK
• Payback time ~ 6 years

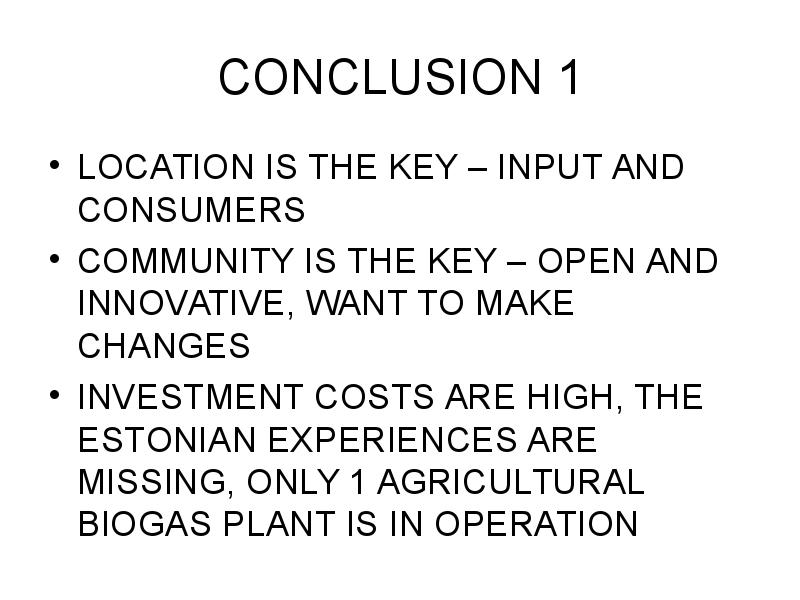

CONCLUSION  1
• LOCATION IS THE KEY – INPUT AND
CONSUMERS
• COMMUNITY IS THE KEY –  OPEN  AND
INNOVATIVE, WANT TO MAKE
CHANGES
• INVESTMENT COSTS ARE HIGH, THE
ESTONIAN  EXPERIENCES  ARE
MISSING , ONLY 1 AGRICULTURAL
BIOGAS PLANT IS IN OPERATION



Document Outline

  • Slide 1
  • Slide 2
  • Slide 3
  • Slide 4
  • Slide 5
  • Slide 6
  • Slide 7
  • Slide 8
  • Slide 9
  • Slide 10
  • Slide 11
  • Slide 12
  • Slide 13
  • Slide 14
  • Slide 15
  • Slide 16
  • Slide 17
  • Slide 18
  • Slide 19
  • Slide 20
  • Slide 21
  • Slide 22
  • Slide 23
  • Slide 24
  • Slide 25
  • Slide 26
  • Slide 27
  • Slide 28
  • Slide 29
  • Slide 30
  • Slide 31
  • Slide 32
  • Slide 33
  • Slide 34
  • Slide 35
  • Slide 36
  • Slide 37
Vasakule Paremale
How to produce bioenergy from agricultural resources without harming the environment #1 How to produce bioenergy from agricultural resources without harming the environment #2 How to produce bioenergy from agricultural resources without harming the environment #3 How to produce bioenergy from agricultural resources without harming the environment #4 How to produce bioenergy from agricultural resources without harming the environment #5 How to produce bioenergy from agricultural resources without harming the environment #6 How to produce bioenergy from agricultural resources without harming the environment #7 How to produce bioenergy from agricultural resources without harming the environment #8 How to produce bioenergy from agricultural resources without harming the environment #9 How to produce bioenergy from agricultural resources without harming the environment #10 How to produce bioenergy from agricultural resources without harming the environment #11 How to produce bioenergy from agricultural resources without harming the environment #12 How to produce bioenergy from agricultural resources without harming the environment #13 How to produce bioenergy from agricultural resources without harming the environment #14 How to produce bioenergy from agricultural resources without harming the environment #15 How to produce bioenergy from agricultural resources without harming the environment #16 How to produce bioenergy from agricultural resources without harming the environment #17 How to produce bioenergy from agricultural resources without harming the environment #18 How to produce bioenergy from agricultural resources without harming the environment #19 How to produce bioenergy from agricultural resources without harming the environment #20 How to produce bioenergy from agricultural resources without harming the environment #21 How to produce bioenergy from agricultural resources without harming the environment #22 How to produce bioenergy from agricultural resources without harming the environment #23 How to produce bioenergy from agricultural resources without harming the environment #24 How to produce bioenergy from agricultural resources without harming the environment #25 How to produce bioenergy from agricultural resources without harming the environment #26 How to produce bioenergy from agricultural resources without harming the environment #27 How to produce bioenergy from agricultural resources without harming the environment #28 How to produce bioenergy from agricultural resources without harming the environment #29 How to produce bioenergy from agricultural resources without harming the environment #30 How to produce bioenergy from agricultural resources without harming the environment #31 How to produce bioenergy from agricultural resources without harming the environment #32 How to produce bioenergy from agricultural resources without harming the environment #33 How to produce bioenergy from agricultural resources without harming the environment #34 How to produce bioenergy from agricultural resources without harming the environment #35 How to produce bioenergy from agricultural resources without harming the environment #36 How to produce bioenergy from agricultural resources without harming the environment #37
Punktid 50 punkti Autor soovib selle materjali allalaadimise eest saada 50 punkti.
Leheküljed ~ 37 lehte Lehekülgede arv dokumendis
Aeg2016-02-15 Kuupäev, millal dokument üles laeti
Allalaadimisi 2 laadimist Kokku alla laetud
Kommentaarid 0 arvamust Teiste kasutajate poolt lisatud kommentaarid
Autor ahto.oja Õppematerjali autor

Sarnased õppematerjalid

Biogas – The source of future energy
26
docx

Biogas – The source of future energy

Also for space-, water- or process heating. Unintentional production of biogases has been an ongoing issue in many regions of the world, and several nations have also looked to biogas as a potential source of clean energy. India and China have both invested extensively in creative biogas technology to provide fuel for their citizens and there are a number of interesting applications for this gas which appeal to people who are interested in sustainable energy and the health of the environment. The basis for biogas is organic material such as food scraps and feces which are held in an anaerobic area, which can range from a storage tank which is not ventilated to a device which is specifically designed to produce gases. The conditions attract anaerobic bacteria, which start to break down the organic material, producing methane and carbon dioxide as a by-product. Another type of biogas which includes hydrogen, nitrogen, and carbon monoxide can be obtained

Inglise keel
Energeetika arengu plaanimine
20
docx

Energeetika arengu plaanimine

............................................................14 2.5. Biomass Energy....................................................................................................16 3. Conclusion............................................................................................................ ....18 4. Sources............................................................................................................... .......19 Renewable energy Renewable energy is energy generated from natural resources--such as , wind, rain, tides and geothermal heat--which are renewable (naturally replenished). In 2006, about 18% of global final energy consumption came from renewables, with 13% coming from traditional biomass, such as wood-burning. Hydroelectricity was the next largest renewable source, providing 3% (15% of global electricity generation),followed by solar hot water/heating, which contributed 1.3%. Modern

Energeetika arengu plaanimine
Energy - põhjalik referaat energiast
62
doc

Energy - põhjalik referaat energiast

...........................................................................................20 7.1 The science of electricity............................................................................................21 7.2 Static electricity..........................................................................................................22 7.3 Magnets and electricity...............................................................................................22 7.4 Batteries produce electricity....................................................................................... 23 7.5 Electricity travels in circuits.......................................................................................24 7.6 How electricity is generated....................................................................................... 24 7.7 The transformer - moving electricity..........................................................................27 7

Inglise keele foneetika ja fonoloogia
Sustainability aspects of biofuels
11
docx

Sustainability aspects of biofuels

not be discussed; although they could significantly improve the sustainability of biofuels when they break through to the industrial scale. 2. The scale of biofuels production 2.1. Drivers of biofuels production Lal (2010) stated that "three inter-connected challenges face humankind in the 21st century": food security, climate change, and energy security. The world population is projected to reach 9 billion in 2050, posing more demands on energy, food, and other natural resources. It has been estimated that the world food production needs to double and meat production increase by 85% by 2050 to fulfill projected demand by population (Karp, 2011). In the recent decades, the food consumption in the most populous counties has shifted from grain-based diets to meat and dairy diets. Meat production requires times more biomass in the form of animal feed and that puts further pressures on natural resources. As food production is very

Inglise keel
BARRIERS TO DISTRICT HEATING DEVELOPMENT IN SOME EUROPEAN COUNTRIES
10
docx

BARRIERS TO DISTRICT HEATING DEVELOPMENT IN SOME EUROPEAN COUNTRIES

BARRIERS TO DISTRICT HEATING DEVELOPMENT IN SOME EUROPEAN COUNTRIES Abstract District heating (DH) offers low primary energy demand, high security of supply and small CO 2 emissions. Barriers to DH in the UK, Ireland, France, Romania and the Czech Republic have been compiled through publications and interviews. DH systems require large investments, have negative initial cash flow and long payback time, which obstructs financing. One actor should control DH from source to consumption. If the value chain is fragmented, contracts are required between the links. It increases risks and financing costs, like in the UK and Ireland, where DH is not established. There are few multi- family houses with central heating and it is expensive to build DH networks in built areas. Most French DH systems are operated according to long-term concessions by companies that sell electricity and gas. No strong actor provides unbiased DH support. In the Czech Republic, gas

Inglise keel
Green Energy presentation
36
ppt

Green Energy presentation

Recycling What is Green Energy? -It is energy resources that are renewable -Can be naturally replenished -Clean, Safe and not harmful to the environment (aka mother earth) Types of Green Energy Green Energy going cute Solar Power · Is produced by using photovoltaic cells, which capture sunlight and turns that into energy. Problems ? -The sun has got to shine -The cost of solar panels and the systems range between $20k-40k -The light from the sun produces a very small amount of energy Wind Power -These giant pinwheels spin from strong winds which spins a turbine of a generator to produce energy. Giant Pin Wheels? Any Studies done? · It is said that wind · Bentek Energy did the energy is suppose to Study and used about bring down costs and 1/3 of the US population reduce the in the air. for 2 years. · Well Forbes found a · The claims of cutting

Inglise keel
Renewable energy
30
pptx

Renewable energy

Renewable energy Meriliin Lend Estonian University of Life Sciences Tartu 2013 Topics Renewable energy Solar energy Wind energy Hydroelectric power Geothermal energy Biomass energy Renewable energy Renewable energy comes from sources that naturally renew, or will not run out in our lifetimes. Includes sunlight, wind, water, geothermal heat and various forms of biomass. Renewable energy cannot be exhausted and is constantly renewed. Does not harm the environment. Saves money. Solar energy Solar energy is the technology used to harness the sun's energy and make it useable. Every hour the sun beams onto Earth more than enough energy to satisfy global energy needs for an entire year. Solar energy use has surged at about 20 percent a year over the past 15 years, thanks to rapidly falling prices and gains in efficiency. Solar energy is inexhaustible. Noise free. Does not harm the environment. Click to edit Master text styles Second level

Inglise keel
PETROLEUM
29
rtf

PETROLEUM

Tallinn 2013 Ott Speek Subject: English Geodesy Study group: GI-21b PETROLEUM PRESENTATION Petroleum (L. petroleum, from Greek: Πέτρα (rock) + Latin: oleum (oil) is a naturally occurring flammable liquid consisting of a complex mixture of hydrocarbons of various molecular weights and other liquid organic compounds, that are found in geologic formations beneath the Earth's surface. The name Petroleum covers both naturally occurring unprocessed crude oils and petroleum products that are made up of refined crude oil. A fossil fuel, it is formed when large quantities of dead organisms,

Inglise keel




Meedia

Kommentaarid (0)

Kommentaarid sellele materjalile puuduvad. Ole esimene ja kommenteeri



Sellel veebilehel kasutatakse küpsiseid. Kasutamist jätkates nõustute küpsiste ja veebilehe üldtingimustega Nõustun
