Vildakpaine (0)

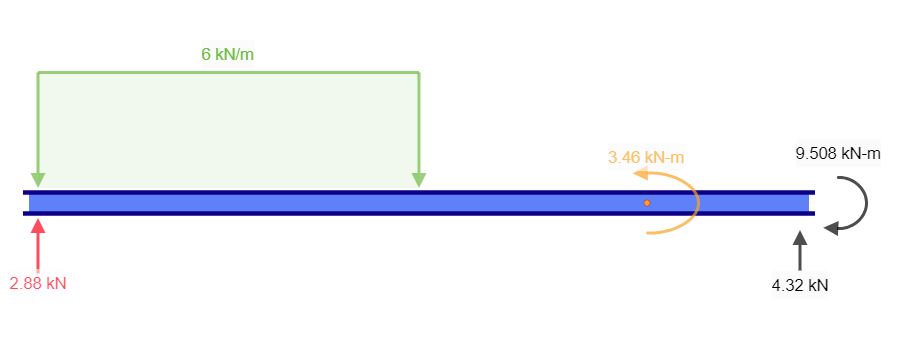

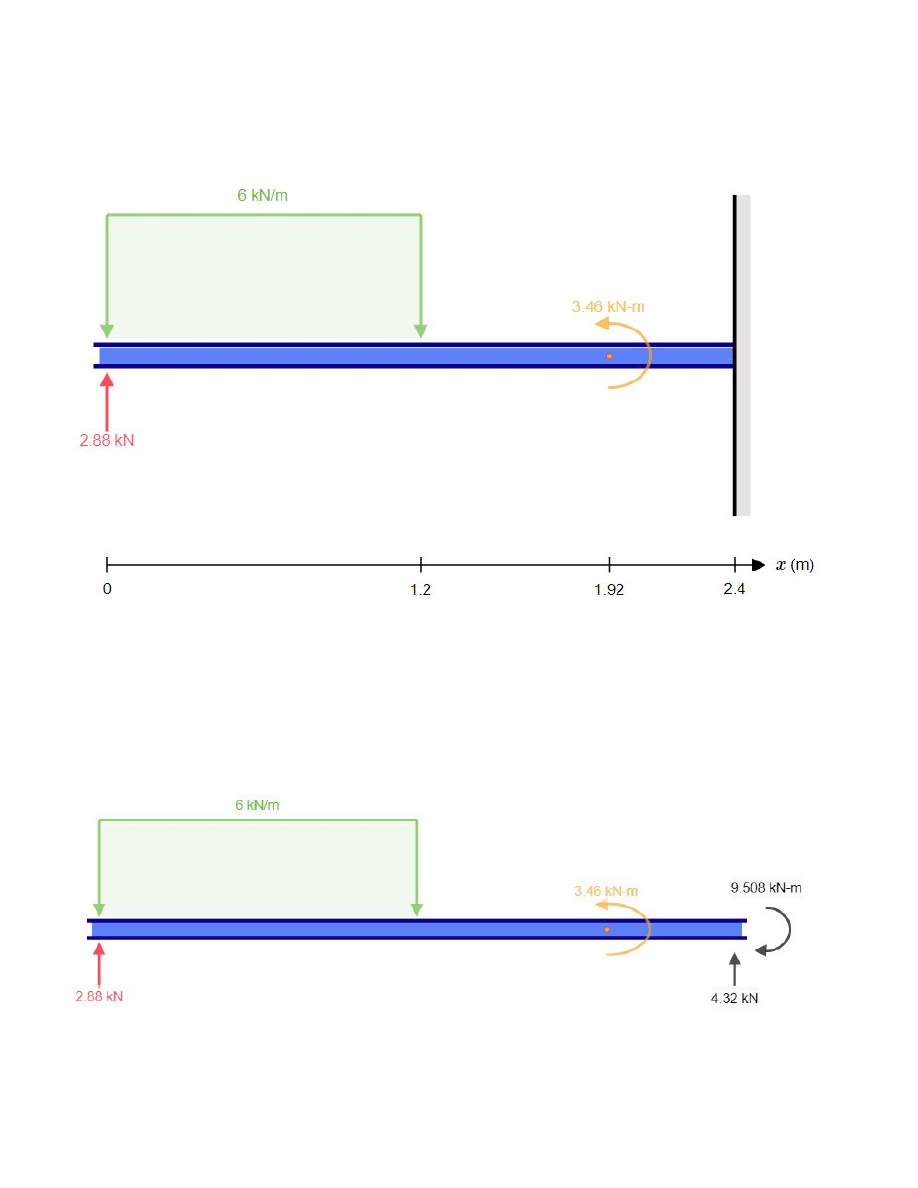

Toereaktsioonid A B C D p= F= M=

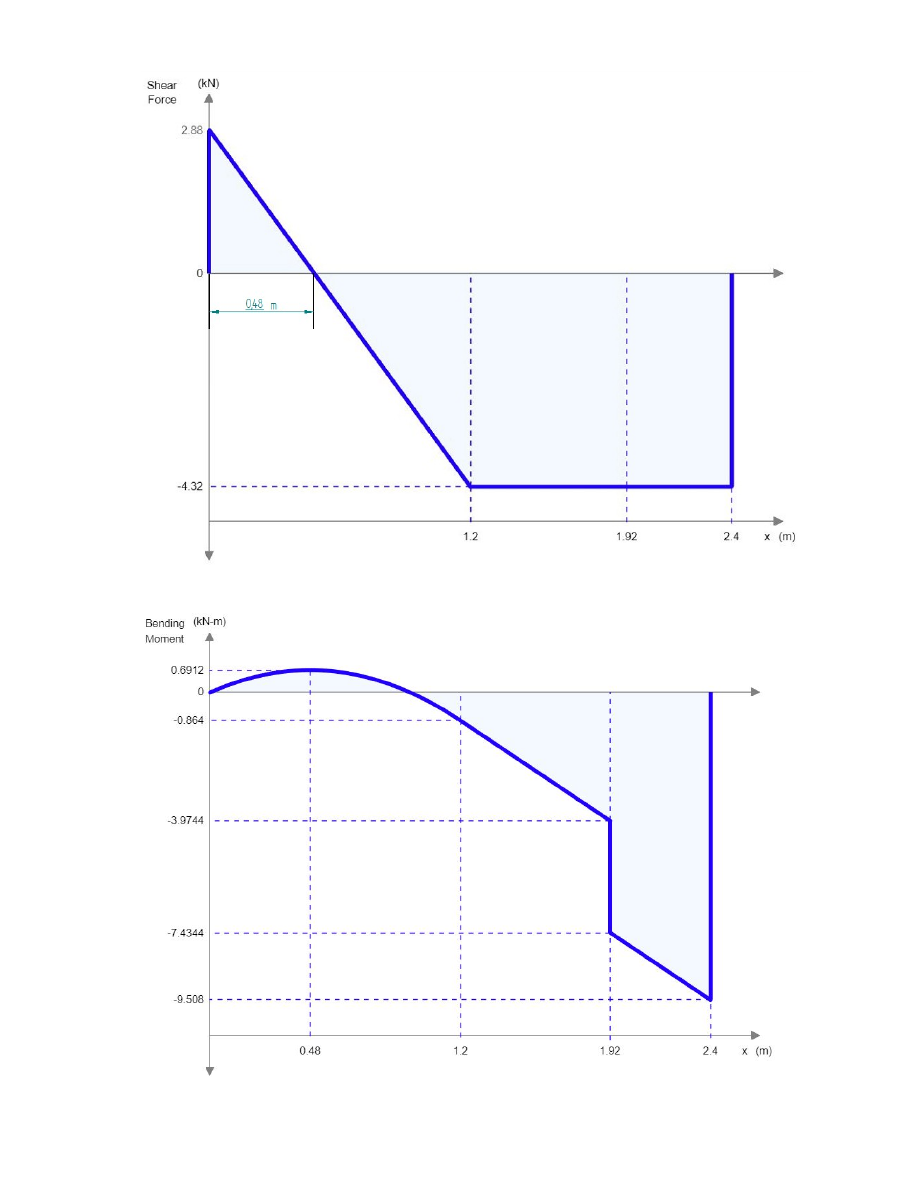

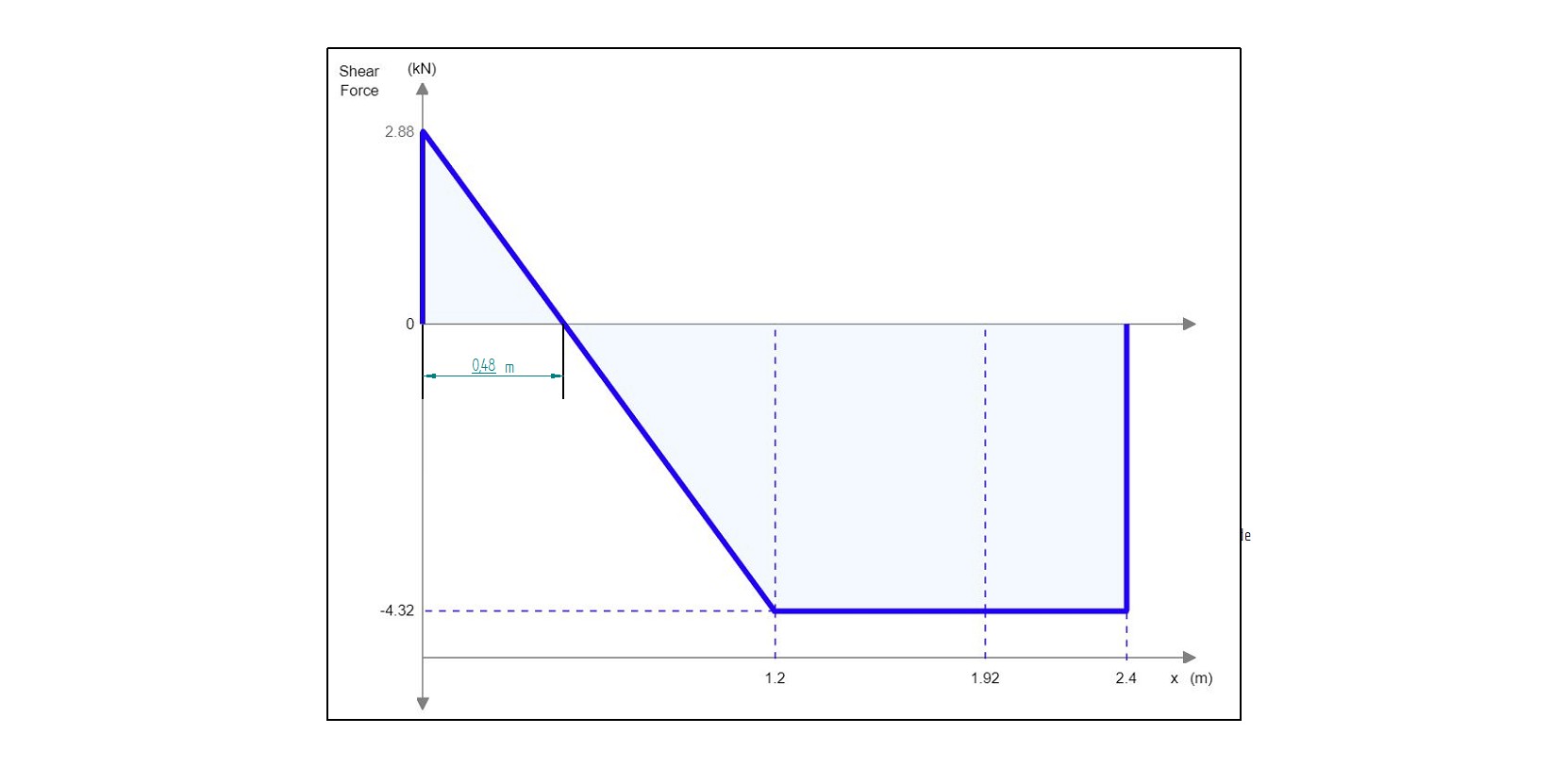

Põikjõudude epüür Paindemomentide epüür E

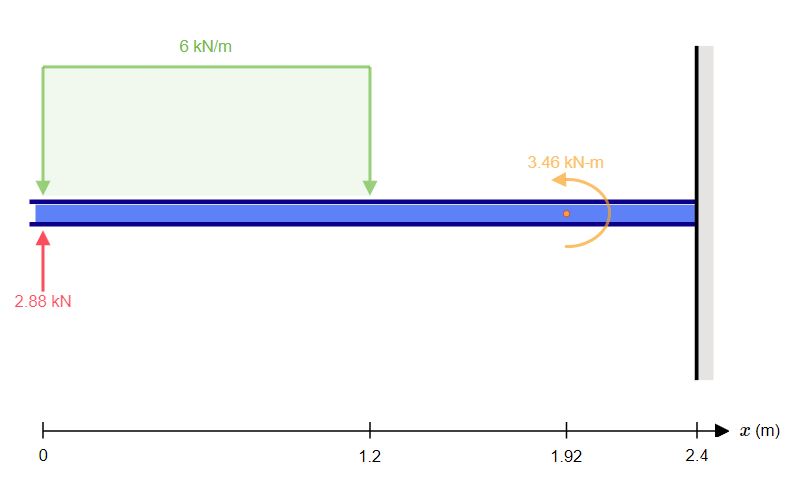

Konsooli arvutus Algandmed  Väärtused ühikuta l 2.4m := lü 2.4 := p 6 kN m := pü 6 := Fü 0.2 pü ⋅ lü ⋅ 2.88 = := F 2.88kN := Μü 0.1 pü ⋅ lü 2 ⋅ 3.46 = := Μ 3.46kN m ⋅ := a 0.5 l ⋅ 1.2 m ⋅ → := b 0.2 l ⋅ 0.48 m ⋅ → := Toereaktsioonid  FA F − p a ⋅ + explicit ALL ,  2.88 kN ⋅ − 6 kN m ⋅ 1.2 m ⋅ ⋅ + → 4.32 kN ⋅ = := FA 4.32kN := ΜA F − l⋅ p a ⋅ l a 2 −       ⋅ + Μ + 12.96 kN ⋅ m ⋅ 6.912 − kN ⋅ m ⋅ + 3.46 kN ⋅ m ⋅ + → 9.508 kN m ⋅ ⋅ = := ΜA 9.508kN m ⋅ := Põikjõudude epüür FA_C FA − = 4.32 − kN = FBC F = 2.88kN = x F p explicit ALL ,  2.88 kN ⋅ 6 kN m ⋅ → 0.48 m ⋅ → :=

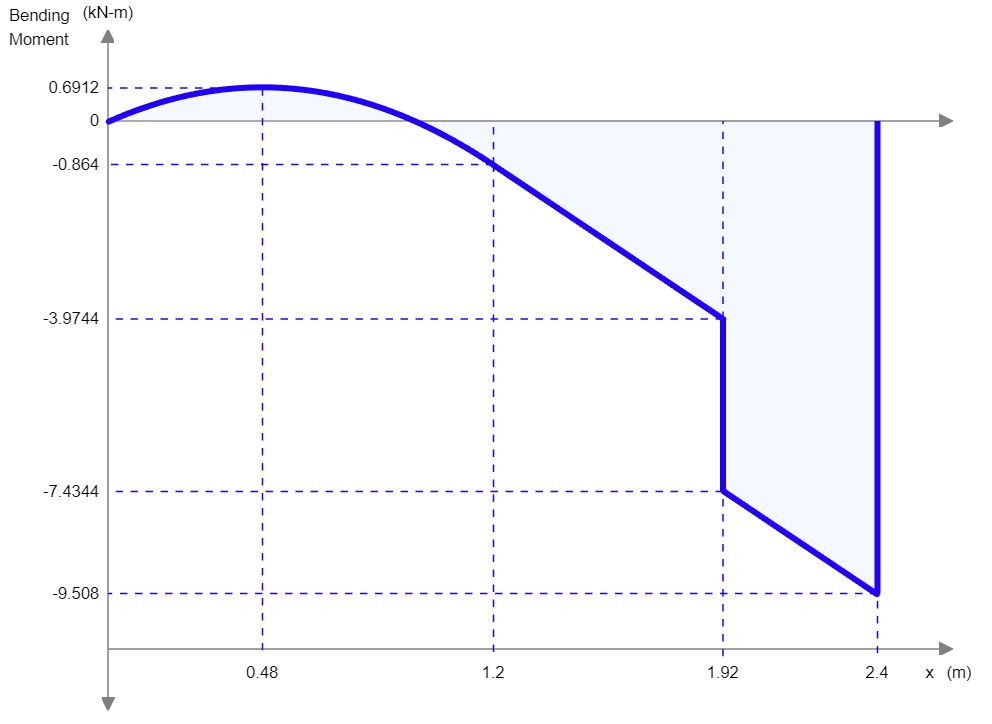

Paindemomentide epüür MBC 0kN m ⋅ = MA_D ΜA − 9.508 − kN ⋅ m ⋅ → := MDA ΜA − FA b ⋅ + 2.0736 kN ⋅ m ⋅ 9.508 − kN ⋅ m ⋅ + → 7.434 − m kN ⋅ = := MDC ΜA − FA b ⋅ + Μ + 2.0736 kN ⋅ m ⋅ 9.508 − kN ⋅ m ⋅ + 3.46 kN ⋅ m ⋅ + → 3.974 − m kN ⋅ = := MCD ΜA − FA l a − ( ) ⋅ + Μ + 5.184 kN ⋅ m ⋅ 9.508 − kN ⋅ m ⋅ + 3.46 kN ⋅ m ⋅ + → 0.864 − kN m ⋅ ⋅ = := MEB F 0.48 ⋅ m p 0.48m ( ) 2 2 ⋅ − 0.6912 − kN ⋅ m ⋅ 1.3824 kN ⋅ m ⋅ + → 0.691 kN m ⋅ ⋅ = :=
