GNSS-vastuvõtja seadistamine staatiliseks mõõdistamiseks. Staatiline mõõdistamine. Vastuvõtjapõhiste failide konverteerimine RINEX formaati. (0)

Praktikum nr 4. GNSS - vastuvõtja seadistamine staatiliseks mõõdistamiseks. Staatiline mõõdistamine. Vastuvõtjapõhiste failide konverteerimine RINEX formaati .

Ülesandeks oli teha kiirstaatiline mõõtmine Metsamaja esise parkla vasakus kaugemas nurgas paikneval punktil. Meie rühmale sai kasutatavaks instrumendiks Trimble R8.
Ülesanne 1. Loo Trimble väliarvutis kiirstaatiliseks mõõtmiseks sobiv profiil ( menüü „Configuration“). Pane kirja profiili loomise sammud.

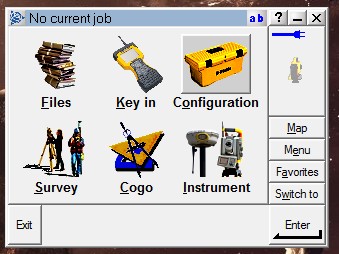

Kõigepealt lõime kasutatavasse väliarvutisse uue mõõtmisstiili Configuration Survey StylesNew. Mõõtmisstiili tüübiks valime GNSS.

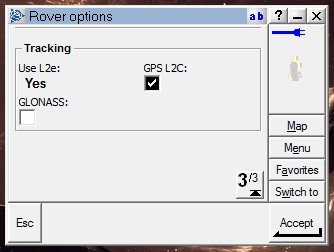

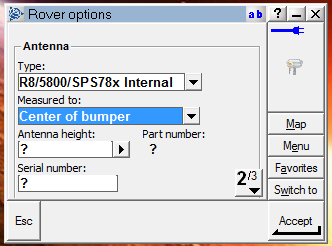

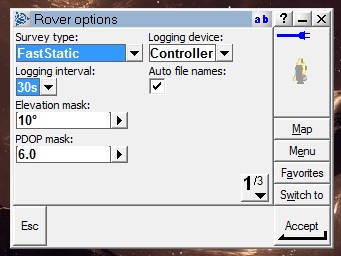

Liikuvjaama seadetes määrame ära mõõtmiste tüübi, milleks on kiirstaatiline (Rast Static) ning salvestusintervalliks on 30 sekundit. Andmed salvestatakse väliarvutisse. Samuti tuleb siinkohal määrata vastuvõtja antenni tüüp ja punkt milleni mõõdetakse antenni kõrgus. Praegusel juhul on selleks vastuvõtja korpuse keskkoht ( Center of bumper). Kuna kasutatav vastuvõtja GLONASS signaali vastu ei võta, siis selle lülitame välja.

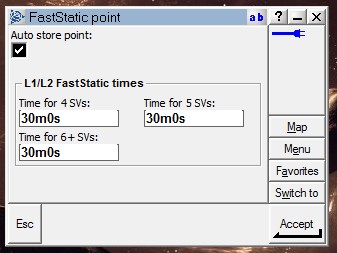

Järgnevalt saame seadistada aja mille jooksul mõõtmisi sooritatakse. Ülesandes on selleks ette nähtud 30 minutit. Uue mõõtmisprofiili loomise etapid on järgnevatel piltidel illustreerivalt välja toodud. Selleks on kasutatud programmi TSC Emulator.
Ülesanne 2. Mõõdista kiirstaatilise meetodiga (~30 min) EMÜ Metsamaja parklas üks punkt. Pärast mõõdistamist võtta andmed arvutisse ja programmiga TEQC konverteerida RINEX 2.11-formaati, nii et RINEX-faili päises oleks antud antenni kõrgusena vertikaalkaugus geodeetiliset punktist antenni referentspunktini. Esita Moodlesse vormistatud mõõdistamise välileht , antenni kõrguse ümberarvutus ja RINEX-fail.
Mõõdistamise alustamiseks valime väliarvuti menüüst SurveyAHIXStart Survey. Andmete salvestama hakkamiseks valime Measure points ning seejärel toimub andmdete salvestamine senikaua kuni profiilis märgitud aeg läbi saab.
Väljas olles sai vastuvõtja aku tühjaks ning andmeid koguti ca 20 minutit. Andmeid väliarvutist üle võttes tekkis probleeme nende leidmisega väliarvuti mälust, kuid lõpuks saime andmed ikkagi kätte.
Ülesande jätkamiseks tuli Trimble vastuvõtjapõhine formaat (*.T02 formaat) konverteerida RINEX- formaadis mõõtmis- ja navigatsioonifailiks. Selleks konverteerime esmalt vastuvõtjapõhise formaadi Trimble *.DAT formaadis failiks. Selleks kasutame programmi RUNPKR00. Jooksutame käsklust "runpkr00 -g –d 21880800.T02" ning saame tulemuseks *.DAT laiendiga faili.
Järgnevalt teisendame *.DAT faili RINEX mõõtmis- ja navigatsioonifailiks kasutades programmi TEQC. Seda jooksutame samuti käsurealt ning konverteerimise tulemusena saime *.15o laiendiga faili.
GNSS mõõtmiste välileht on toodud järgnevas tabelis 1.
Tabel 1. GNSS mõõtmiste välileht
Vastuvõtja
Trimble R8
Antenn
Punkti nimi
Punkti nr
Tsentri nr
Sessiooni kuupäev
15/03/21
Sess. alguse aeg
16:35
Enne (m):
Sess. lõpu aeg
16:50
1
1,932
Sessioon
A
2
1,934
Vastuvõtja S/N
4515147771
3
1,934
Antenni S/N
Keskm (m)
1,933
Operaator
Triin Roosimäe
Pärast (m):
Märkused:
1
1,932
2
1,934
3
1,934
Keskm (m)
1,933
Keskm (m)
1, 933
Antenni kõrgus:
Väljas mõõtsime antenni kaldkõrguse vastuvõtja keskkohani. Antenni kõrguse arvutamiseks on meil vaja mõõdetud kaldkõrgust (S), antenni raadiust (R) ning antenni konstanti (C). Antenni kõrgus leitakse valemiga H=. Vastavalt välimõõtmiste lehele on antenni kaldkõrgus S= 1,933 m. Antenni kalibreerimisandmete leheküljelt saame antenni raadiuse R= 0,091 m ja antenni konstant C= 0,055 m. Antenni kõrguseks saame vastavalt eeltoodud valemile H= 1,876 m.
Mõõtmiste tulemusena saadud RINEX fail on toodud järgnevatel lehekülgedel.
2.11 OBSERVATION DATA G (GPS) RINEX VERSION / TYPE
teqc 2013Mar15 20150321 15:48:22UTCPGM / RUN BY / DATE
Linux2.6.32-279.el6.x86_64|x86_64|gcc|Win64-MinGW64|= COMMENT
END OF STATIC MODE OBSERVATION COMMENT
BIT 2 OF LLI FLAGS DATA COLLECTED UNDER A/S CONDITION COMMENT
-Unknown- MARKER NAME
2188 MARKER NUMBER
-Unknown- -Unknown- OBSERVER / AGENCY
4515147771 TRIMBLE R8 2.31 REC # / TYPE / VERS
TRM5800 NONE ANT # / TYPE
2993940. 1236 1505544.9607 5408693.0184 APPROX POSITION XYZ
1.8758 0.0000 0.0000 ANTENNA: DELTA H/E/N
1 1 WAVELENGTH FACT L1/2
7 L1 L2 C1 P1 P2 S1 S2 # / TYPES OF OBSERV
16 LEAP SECONDS
SNR is mapped to RINEX snr flag value [0-9] COMMENT
L1 & L2: min(max(int(snr_dBHz/6), 0), 9) COMMENT
2015 3 21 14 32 0.0000000 GPS TIME OF FIRST OBS
END OF HEADER
15 3 21 14 32 0.0000000 0 11G11G18G24G01G04G28G22G13G30G15G17
-157794.32047 -372221.50044 23770530.2894 23770530.8054
42.7504 24.2504
-153963.33647 -359649.14844 23767273.0394 23767273.4614
43.2504 24.5004
-631525.586 7 22352696.859
45.500
-462529.086 7 24303491.094
42.250
-238440.32446 -181852.39143 24073477.7584 24073478.0474
41.0004 22.2504
262591.14548 197655.90246 21631418.2424 21631416.9654
49.7504 36.5004
-392871.60947 -288618.85944 24499082.3984 24499081.0234
43.2504 24.7504
610672.06348 459877.26645 21538806.2274 21538805.6374
49.5004 34.7504
317050.664 7 24537049.883
42.500
-269424.180 8 21080040.344
50.500
-1565543.043 8 22105319.117
48.250
15 3 21 14 32 30.0000000 0 11G11G18G24G01G04G28G22G13G30G15G17
-188408.47347 -396076.67244 23764705.9304 23764705.5164
44.0004 26.0004
-184087.47747 -383122.52044 23761541.2584 23761541.1954
44.0004 24.7504
-760869.711 7 22328083.156
45.250
-556704.113 6 24285569.453
41.250
-285677.57046 -218660.60244 24064488.8134 24064489.1604
41.7504 24.5004
283582.24648 214012.58646 21635411.9614 21635411.2344
50.5004 36.5004
-472406.16846 -350593.88743 24483947.3984 24483946.1684
41.7504 23.2504
657268.76248 496186.32445 21547673.3054 21547672.5124
50.2504 34.5004
384077.348 7 24549805.719
42.250
-283587.098 8 21077345.406
50.000
-1668666.172 8 22085695.352
49.500
15 3 21 14 33 0.0000000 0 11G11G18G24G01G04G28G22G13G30G15G17
-25534.03957 -413794.77354 23759002.5314 23759002.4104
45.5004 26.0004
-25210.21557 -404628.21954 23755911.4454 23755911.4264
44.0004 25.0004
-889946.824 7 22303520.727
44.250
-650370.121 6 24267745.906
41.500
-331958.23456 -245983.09054 24055621.1414 24055622.8364
41.0004 24.2504
18222.06658 229531.43456 21639471.1024 21639470.0514
49.7504 36.5004
-550885.62157 -396129.26253 24468912.8524 24468910.3674
42.7504 23.0004
704009.86758 530415.03955 21556627.3134 21556626.3954
49.5004 35.0004
451212.348 7 24562580.023
43.000
-297142.242 8 21074765.945
50.250
-1771297.617 8 22066165.422
48.500
15 3 21 14 33 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
-54853.76247 -436641.25444 23753422.5704 23753422.7424
43.5004 24.2504
-54246.88747 -427254.21143 23750386.4844 23750386.2384
44.0004 23.7504
-1018752.195 7 22279009.609
45.000
-743521.941 7 24250020.273
43.000
-377907.15246 -281787.42644 24046877.2274 24046878.3164
40.5004 26.0004
39889.83248 246415.38346 21643594.0864 21643593.3954
49.0004 36.5004
-629370.41846 -457286.25843 24453977.1954 24453975.8554
41.7504 22.2504
751519.60948 567435.59045 21565668.0784 21565667.5704
49.7504 34.5004
-310087.324 8 21072302.227
50.500
-1873432.301 8 22046729.641
48.500
15 3 21 14 34 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1491867.91847 768596.46143 24047754.3834 24047753.8754
43.0004 23.2504
1492653.59047 778122.76244 24044751.3914 24044751.9184
43.7504 25.2504
428112.184 7 22554338.977
44.000
739237.816 7 24532179.250
42.500
1152183.75447 910491.23844 24338044.3984 24338045.0784
42.0004 25.0004
1637286.10248 1491139.73446 21947569.0864 21947567.3524
49.0004 36.5004
868067.63747 709548.65243 24738930.3444 24738928.2814
42.2504 23.0004
2374874.03948 1832387.03945 21874581.8594 21874581.6294
49.5004 34.0004
1252969.445 8 21369741.766
50.000
-399672.641 8 22327176.734
48.250
15 3 21 14 34 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1463792.65647 746719.71943 24042410.7034 24042411.4654
43.5004 23.5004
1464652.25047 756303.52344 24039423.0394 24039423.8594
43.0004 25.2504
299802.953 7 22529922.438
43.750
647068.813 7 24514640.305
42.500
1107475.31646 875653.46144 24329536.5474 24329538.4104
41.7504 26.5004
1659574.58248 1508507.36346 21951810.4384 21951809.6804
48.5004 36.0004
790588.00847 649174.90643 24724186.7194 24724184.6844
43.0004 23.5004
2423237.92648 1870073.14845 21883784.9384 21883785.4414
48.5004 34.5004
1241189.914 8 21367500.344
49.500
-500860.578 8 22307920.906
48.750
15 3 21 14 35 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1436333.45747 725323.02343 24037186.2344 24037186.5204
43.0004 22.5004
1437161.93847 734882.47344 24034192.0234 24034192.6604
42.5004 25.0004
171738.133 7 22505552.328
42.500
555388.660 6 24497194.078
41.500
1063381.98046 841295.02744 24321145.7894 24321147.3524
41.0004 26.0004
1682165.16848 1526110.39146 21956109.6644 21956107.8794
48.2504 36.7504
713606.60547 589189.35243 24709537.5784 24709535.4024
42.5004 23.0004
2472019.61348 1908084.81345 21893068.0944 21893067.8484
48.7504 34.2504
1229985.863 8 21365368.344
49.250
-601578.250 8 22288755.258
48.250
15 3 21 14 35 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1409483.87547 704401.29343 24032076.1724 24032077.1374
43.5004 23.2504
1410175.71147 713854.26243 24029055.7584 24029056.1374
43.0004 23.5004
43913.629 7 22481227.969
42.500
464193.426 7 24479839.984
42.250
1019897.80146 807411.27343 24312870.9774 24312872.8014
39.0004 23.0004
1705049.94148 1543942.67646 21960464.0164 21960462.7894
48.7504 36.0004
637118.61747 529588.27743 24694982.1024 24694979.9574
43.0004 22.5004
2521210.48048 1946415.30945 21902429.2424 21902428.7504
48.2504 34.2504
1219350.367 8 21363344.586
49.750
-701829.520 7 22269677.938
46.750
15 3 21 14 36 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1383240.99647 683952.31344 24027082.9694 24027082.9654
43.7504 24.0004
1383689.91847 693215.96943 24024016.5234 24024016.7544
42.7504 22.5004
-83671.617 7 22456949.391
43.500
373482.809 7 24462578.898
42.250
977020.63746 774000.53544 24304712.1254 24304713.4224
40.0004 27.0004
1728224.69948 1562000.89845 21964874.4064 21964872.7344
48.5004 35.5004
561122.96947 470370.96543 24680520.7034 24680519.2814
43.7504 22.2504
2570805.73448 1985060.92645 21911866.8834 21911867.0904
48.2504 34.2504
1209279.820 8 21361428.563
50.000
-801615.473 8 22250688.992
48.250
15 3 21 14 36 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1357599.78147 663972.19544 24022203.1804 24022204.1294
43.2504 25.2504
1357699.72747 672963.87943 24019070.8134 24019070.8404
43.5004 22.7504
-211020.812 7 22432715.609
42.250
283254.363 7 24445408.953
42.500
934745.94546 741059.25844 24296667.7114 24296668.3794
41.5004 26.0004
1751683.22748 1580280.26245 21969338.0554 21969336.8984
48.2504 35.7504
485616.21147 411534.54743 24666152.0084 24666150.0634
42.0004 21.2504
2620798.66047 2024016.40645 21921380.2734 21921379.8164
47.0004 34.5004
1199768.949 8 21359618.547
49.750
-900938.781 8 22231788.703
48.250
15 3 21 14 37 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1332557.99647 644459.16044 24017438.5084 24017438.6374
43.7504 25.5004
1332202.58247 653095.96944 24014218.9064 24014218.8364
43.0004 26.5004
-338133.270 7 22408527.070
43.500
193508.617 6 24428330.273
40.000
893072.46546 708586.44144 24288737.2344 24288738.2344
40.7504 25.0004
1775422.59847 1598778.45345 21973855.8364 21973854.2034
47.7504 35.5004
410597.62947 353078.52743 24651876.4614 24651874.4024
42.5004 21.7504
2671185.12147 2063278.53945 21930968.6884 21930968.1724
47.5004 33.5004
1190815.102 8 21357914.898
50.000
-999799.141 8 22212976.391
48.500
15 3 21 14 37 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1308113.19147 625411.30944 24012785.9924 24012786.9774
43.7504 24.7504
1307195.07047 633609.59444 24009460.3594 24009460.4694
43.7504 25.0004
-465009.988 7 22384383.117
44.000
104245.164 6 24411343.805
39.750
851997.94146 676580.34844 24280920.6804 24280922.0664
41.0004 25.0004
1799438.26647 1617491.94545 21978425.6094 21978424.0004
47.0004 35.5004
336065.68046 295001.66843 24637693.5004 24637691.8244
41.7504 22.2504
2721959.74648 2102843.16045 21940630.4224 21940629.7234
48.5004 34.5004
1182414.813 8 21356315.977
49.000
-1098197.504 7 22194251.703
47.750
15 3 21 14 38 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1284261.50847 606825.61744 24008247.7504 24008248.2774
43.7504 24.0004
1282673.13747 614501.58644 24004793.9384 24004793.5984
43.0004 25.7504
-591652.598 7 22360283.859
44.000
15462.684 6 24394449.328
41.000
811519.22346 645038.50444 24273218.4694 24273218.8794
41.5004 24.2504
1823725.68447 1636417.18445 21983047.1254 21983046.0274
47.5004 35.0004
262018.30146 237302.47343 24623602.3364 24623601.3484
41.7504 22.2504
2773117.54747 2142706.32045 21950365.3984 21950364.7304
47.7504 34.0004
1174563.551 8 21354822.023
48.750
-1196134.703 7 22175614.500
47.500
15 3 21 14 38 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1261001.38347 588700.88343 24003820.8364 24003821.0634
43.0004 21.7504
1258634.93046 595770.46143 24000218.5394 24000219.6174
41.0004 22.7504
-718060.758 7 22336229.500
45.000
-72837.609 6 24377646.641
41.000
771635.27746 613960.03943 24265627.7114 24265629.5744
40.5004 23.5004
1848282.12947 1655552.05545 21987719.9844 21987718.8794
47.7504 34.7504
188455.32046 179980.68043 24609604.1644 24609602.4304
41.0004 22.5004
2824654.31347 2182864.77745 21960172.7504 21960172.0124
47.7504 33.2504
1167259.461 8 21353432.336
50.250
-1293610.578 8 22157065.398
48.000
15 3 21 14 39 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1238330.19947 571035.04743 23999507.4224 23999507.1724
42.5004 23.0004
1235077.37146 577413.90243 23995736.5084 23995736.6334
40.7504 22.5004
-844234.859 7 22312218.945
44.750
-160655.910 6 24360934.875
40.250
732344.49646 583343.84444 24258152.2664 24258153.1914
39.7504 24.2504
1873103.73847 1674893.54345 21992443.9694 21992442.0434
46.7504 34.0004
115375.78547 123035.60943 24595697.8364 24595695.4574
42.5004 21.2504
2876565.41047 2223314.94545 21970051.6094 21970050.4654
47.7504 33.5004
1160499.348 8 21352146.047
49.000
-1390625.004 7 22138604.539
47.750
15 3 21 14 39 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1216245.75047 553826.41843 23995305.0554 23995304.7504
44.0004 22.5004
1211998.00847 559430.00843 23991345.1254 23991344.0944
42.5004 22.7504
-970175.008 7 22288253.688
45.000
-247991.805 6 24344314.938
39.250
693644.78946 553188.24643 24250787.1884 24250788.5904
38.7504 22.5004
1898186.98447 1694438.91445 21997216.8444 21997215.6174
46.5004 34.7504
42778.85247 66466.57443 24581883.1804 24581881.6724
42.5004 22.5004
2928846.98047 2264053.78545 21980000.1334 21979999.6724
47.5004 34.0004
1154280.398 8 21350962.070
50.250
-1487178.504 8 22120231.016
48.500
15 3 21 14 40 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1194743.62547 537071.57843 23991212.8834 23991212.5984
44.0004 23.0004
1189392.59446 541815.37943 23987042.4614 23987043. 1844
41.7504 22.5004
-1095882.297 7 22264331.859
45.500
-334846.648 6 24327786.727
40.500
655533.39146 523491.02043 24243534.4144 24243536.1914
39.0004 23.0004
1923526.86347 1714184.27045 22002038.6884 22002037.3954
47.5004 34.7504
-29337.46947 10272.06643 24568159.2274 24568158.5124
42.0004 22.5004
2981493.53948 2305077.02045 21990018.0784 21990017.5904
48.2504 33.2504
1148598.215 8 21349881.273
50.250
-1583272.504 8 22101944.664
48.000
15 3 21 14 40 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1173819.61347 520767.25044 23987231.1254 23987231.5784
44.2504 24.0004
1167255.37947 524565.58644 23982831.0864 23982830.9654
43.5004 24.5004
-1221360.492 7 22240454.180
45.750
-421223.039 6 24311348.969
38.000
618005.44546 494248.45344 24236393.7034 24236395.4694
39.5004 25.5004
1949117.43848 1734124.95745 22006908.1254 22006907.2504
48.0004 34.2504
-100977.07847 -45551.06643 24554526.8914 24554524.9264
42.5004 22.5004
3034497.72347 2346378.95345 22000105.0234 22000104.9064
46.5004 33.7504
1143447.059 8 21348900.977
49.000
-1678909.652 8 22083745.344
48.500
15 3 21 14 41 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1153473.57847 504913.23043 23983359.1484 23983358.9024
43.5004 22.5004
1145586.30947 507680.58643 23978706.4844 23978707.0864
42.0004 22.5004
-1346606.348 7 22216620.484
45.750
-507118.004 6 24295005.039
40.000
581061.72746 465461.16443 24229363.4614 24229364.6564
40.5004 23.5004
1974957.80948 1754260.28545 22011825.6174 22011824.5164
48.5004 34.7504
-172138.24247 -101001.38343 24540986.4144 24540983.8524
42.5004 22.2504
3087858.41847 2387958.65245 22010258.8984 22010258.8914
47.5004 33.7504
1138826.758 8 21348021.602
49.250
-1774087.465 8 22065633.383
49.250
15 3 21 14 41 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1133703.48847 489508.05143 23979597.2974 23979597.3364
42.2504 22.5004
1124383.15647 491158.62943 23974672.9064 23974672.2074
43.0004 22.2504
-1471620.328 7 22192831.531
45.250
-592531.172 6 24278750.641
37.000
544700.90646 437128.07043 24222444.3834 24222445.3874
41.2504 23.0004
2001044.73048 1774587.72745 22016790.7504 22016788.8404
49.0004 34.7504
-242821.26647 -156079.05543 24527535.2894 24527533.8244
42.0004 23.0004
3141570.69147 2429812.33245 22020479.8444 22020480.0204
47.0004 32.5004
1134734.426 8 21347242.633
49.750
-1868805.789 8 22047609.547
48.000
15 3 21 14 42 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1114508.86347 474551.20743 23975944.0634 23975945.0474
42.2504 22.7504
1103644.91846 474998.95743 23970726.4144 23970725.6054
40.7504 22.7504
-1596400.590 7 22169086.711
46.250
-677460.316 6 24262590.016
38.250
508923.14846 409249.32844 24215636.2194 24215637.4694
38.7504 26.2504
2027376.91848 1795106.30145 22021801.0554 22021800.0784
48.5004 34.7504
-313024.92647 -210783.17643 24514175.7424 24514174.1804
42.2504 23.2504
3195632.80547 2471938.59845 22030767.9304 22030767.6914
46.2504 33.0004
1131169.551 8 21346564.820
48.500
-1963062.574 8 22029672.859
48.500
15 3 21 14 42 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1095888.98846 460042.24243 23972401.2274 23972401.4964
41.2504 21.5004
1083370.95746 459201.05543 23966867.3984 23966867.3984
41.0004 21.0004
-1720944.617 7 22145386.406
45.250
-761903.430 6 24246520.969
38.000
473728.65246 381825.13744 24208938.5704 24208939.9024
40.0004 25.5004
2053952.80548 1815814.75845 22026858.2504 22026857.0274
49.0004 34.7504
-382748.34447 -265113.05543 24500908.2974 24500906.2894
42.2504 23.2504
3250042.23447 2514335.51645 22041121.9144 22041121.9804
47.0004 32.7504
1128130.934 8 21345986.359
50.000
-2056856.297 8 22011824.594
48.500
15 3 21 14 43 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1077843.61747 445980.93443 23968967.5164 23968967.3164
42.5004 21.5004
1063560.41446 443764.24643 23963098.6024 23963097.4224
41.2504 22.2504
-1845251.086 7 22121732.172
46.750
-845858.387 6 24230544.773
40.000
439117.23046 354855.16843 24202352.7894 24202353.2464
39.2504 23.7504
2080771.03148 1836712.05145 22031961.1884 22031959.9774
49.0004 35.2504
-451990.53146 -319068.00843 24487730.9534 24487729.3444
40.2504 22.5004
3304796.93047 2557001.45745 22051541.2034 22051541.3364
46.0004 32.2504
1125617.402 8 21345508.234
49.750
-2150184.875 8 21994064.672
48.250
15 3 21 14 43 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1060370.53547 432365.57443 23965642.6414 23965642.5984
43.5004 22.0004
1044210.89146 428686.71943 23959415.1094 23959416.4384
41.0004 23.5004
-1969319.633 7 22098122.555
44.250
-929324.445 6 24214661.602
41.000
405087.64546 328338.61343 24195876.8834 24195877.4774
40.5004 23.0004
2107828.72348 1857795.94545 22037110.2734 22037109.3794
48.5004 34.0004
-520751.82046 -372648.19143 24474647.3134 24474644.7384
40.5004 23.0004
3359892.98847 2599933.40645 22062025.4144 22062025.3984
44.7504 32.0004
1123626.578 8 21345129.313
49.000
-2243047.930 8 21976393.359
48.750
15 3 21 14 44 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1043465.03547 419192.51643 23962425.1174 23962424.6454
42.5004 22.2504
1025317.64146 413964.69943 23955819.3284 23955820.6054
41.0004 22.5004
-2093152.113 7 22074557.922
45.000
-1012303.672 6 24198871.320
40.750
371635.90246 302272.35243 24189510.4454 24189511.7814
39.0004 22.5004
2135120.32047 1879062.10245 22042303.6564 22042302.4614
47.0004 35.0004
-589034.92246 -425855.75443 24461652.3914 24461650.3834
41.5004 22.7504
3415324.15247 2643126.45345 22072574.1414 22072573.8134
45.7504 33.0004
1122153.309 7 21344848.969
47.750
-2335447.996 8 21958810.117
48.250
15 3 21 14 44 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1027129.60947 406463.64843 23959316.8524 23959316.5554
42.5004 22.5004
1006882.48047 399599.60243 23952312.6094 23952312.8914
42.0004 22.7504
-2216743.516 7 22051038.852
44.250
-1094791.090 6 24183173.813
41.000
338765.14546 276658.80543 24183256.3524 24183257. 1054
41.0004 22.5004
2162647.46547 1900511.78945 22047542.2194 22047541.6334
47.7504 35.0004
-656836.18046 -478687.92643 24448750.0944 24448749.0204
40.7504 23.0004
3471090.91447 2686581.04745 22083185.8204 22083185.4454
46.0004 32.2504
1121199.633 8 21344667.563
48.250
-2427380.004 7 21941316.141
47.500
15 3 21 14 45 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
1011365.25047 394179.81343 23956316.7734 23956316.6374
43.0004 22.0004
988905.74247 385591.76643 23948891.4844 23948892.3134
42.2504 22.2504
-2340091.418 7 22027566.664
44.750
-1176783.539 6 24167571.453
40.750
306476.16046 251498.57043 24177111.3674 24177112.4964
38.0004 23.0004
2190409.58647 1922144.58245 22052825.4064 22052824.6094
47.5004 35.0004
-724153.65647 -531143.03544 24435939.9844 24435938.2074
42.7504 24.5004
3527191.99647 2730296.11345 22093861.9064 22093861.6214
46.5004 32.5004
1120765.398 8 21344584.781
48.250
-2518841.254 8 21923911.828
48.250
15 3 21 14 45 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
996168.59447 382338.26643 23953424.7814 23953425.4414
42.0004 21.7504
971383.93447 371938.42243 23945557.3914 23945557.6804
42.5004 23.0004
-2463196.043 7 22004140.711
45.500
-1258281.461 6 24152062.898
41.500
274766.83646 226790.04343 24171077.3364 24171078.2664
38.5004 22.7504
2218403.03548 1943957.63745 22058152.5394 22058151.2464
48.0004 35.0004
-790988.73847 -583222.35944 24423222.0234 24423220.0084
42.5004 26.2504
3583622.61747 2774267.98045 22104600.0084 22104599.4454
46.2504 31.7504
1120847.203 8 21344600.281
49.750
-2609832.352 8 21906596.438
48.250
15 3 21 14 46 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
981537.02746 370937.08643 23950640.0944 23950640.5354
40.5004 21.7504
954314.80947 358637.87543 23942308.9144 23942309.5314
43.5004 22.5004
-2586057.562 7 21980760.813
45.500
-1339284.734 7 24136649.617
42.500
243635.00446 202531.54343 24165152.5394 24165154.9534
39.7504 23.7504
2246624.41047 1965948.28545 22063522.9144 22063521.5554
47.7504 34.7504
-857341.91847 -634926.08243 24410595.4304 24410593.4924
42.0004 22.0004
3640378.74647 2818493.48445 22115400.2114 22115399.8834
45.5004 32.2504
1121441.980 8 21344713.414
49.500
-2700353.402 8 21889370.930
48.000
15 3 21 14 46 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
967468.96546 359974.99643 23947963.4304 23947963.5514
40.5004 21.7504
937695.80547 345687.99243 23939147.1484 23939146.8164
42.0004 22.2504
-2708674.777 7 21957427.289
46.000
-1419792.266 7 24121328.617
42.250
213079.88346 178722.41444 24159339.4774 24159339.6524
40.5004 25.5004
2275071.86347 1988115.10245 22068935.8674 22068935.2664
46.2504 34.5004
-923213.31647 -686254.48444 24398060.6484 24398058.1994
43.2504 24.5004
3697457.18447 2862970.13745 22126262.3984 22126261.9224
46.7504 31.7504
1122547.617 8 21344923.930
48.250
-2790403.754 8 21872235.359
48.500
15 3 21 14 47 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
953966.19946 349453.39843 23945393.4384 23945394.0354
40.5004 20.5004
921528.32447 333089.95743 23936069.6644 23936070.8204
42.2504 22.2504
-2831043.758 7 21934141.125
45.750
-1499799.703 6 24106103.188
41.750
183103.55146 155364.30544 24153634.8284 24153635.4064
41.0004 24.7504
2303745.49248 2010458.16445 22074392.4924 22074391.3014
48.0004 35.2504
-988599.82046 -737204.96544 24385617.7034 24385616.1604
41.5004 25.2504
3754857.66047 2907697.73445 22137184.9694 22137184.8554
47.5004 31.7504
1124165.492 8 21345231.867
49.500
-2879979.047 7 21855188.953
47.500
15 3 21 14 47 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
941026.07046 339370.17243 23942931.9454 23942930.9734
40.2504 20.0004
905810.16846 320842.02043 23933079.0084 23933079.0664
41.2504 22.0004
-2953164.199 7 21910902.734
46.500
-1579307.008 7 24090973.172
42.000
153703.94546 132455.60944 24148039.8134 24148041.1484
41.5004 24.7504
2332642.35547 2032975.18845 22079891.3134 22079890.2584
47.0004 35.0004
-1053502.48447 -787778.44544 24373267.2974 24373266.1454
43.0004 26.5004
3812575.84447 2952672.89545 22148168.7034 22148168.5274
46.2504 31.5004
1126292.348 8 21345636.617
48.750
-2969079.645 8 21838233.984
48.500
15 3 21 14 48 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
928649.86346 329726.43843 23940575.8594 23940575.6764
41.5004 20.0004
890542.10947 308944.84843 23930173.7194 23930174.0474
42.5004 22.5004
-3075031.430 7 21887712.281
45.500
-1658310.148 7 24075939.664
42.250
124883.29746 109997.99244 24142555.5784 24142556.5274
40.0004 24.5004
2361763.09847 2055666.64845 22085433.0084 22085431.4924
46.5004 34.2504
-1117917.95746 -837972.35244 24361009.9454 24361007.4494
41.7504 25.2504
3870611.67647 2997895.57045 22159212.0234 22159212.6484
46.0004 32.0004
1128929.309 8 21346138.461
49.000
-3057701.801 8 21821369.625
48.250
15 3 21 14 48 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
916838.86747 320523.15643 23938328.7894 23938328.5864
43.0004 21.2504
875724.97747 297399.05143 23927354.5864 23927353.9734
43.0004 22.0004
-3196642.828 7 21864570.688
46.500
-1736805.160 6 24061002.336
41.000
96643.31346 87992.90243 24137181.0084 24137182.8634
40.5004 22.5004
2391108.45347 2078533.13745 22091017.3204 22091015.5204
47.5004 34.0004
-1181843.44946 -887784.44944 24348845.2424 24348843.0314
41.0004 25.0004
3928964.80147 3043365.50045 22170316.2194 22170316.7074
46.2504 31.2504
1132077.043 8 21346737.586
49.250
-3145841.766 8 21804597.141
48.250
15 3 21 14 49 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
905591.75047 311759.18043 23936189.3914 23936187.8554
42.2504 18.5004
861357.11747 286203.29343 23924620.2584 23924620.0124
42.7504 22.5004
-3317996.930 7 21841476.805
46.500
-1814790.926 7 24046162.719
43.250
68982.87946 66439.34443 24131918.1024 24131918.6214
41.0004 22.5004
2420676.31347 2101573.00045 22096643.7344 22096642.5234
47.0004 34.2504
-1245279.00446 -937214.74244 24336772.7974 24336772.0514
41.2504 24.2504
3987632.07447 3089080.20345 22181480.7274 22181481.0824
47.5004 32.0004
1135733.539 8 21347433.164
50.750
-3233498.789 8 21787916.445
48.250
15 3 21 14 49 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
894909.69146 303435.53943 23934155.6564 23934155.5514
41.5004 20.5004
847439.60247 275358.50843 23921971.7814 23921972.2664
43.5004 22.2504
-3439089.059 7 21818434.094
47.250
-1892263.375 7 24031419.992
42.500
41904.26646 45339.17643 24126764.3204 24126765.6564
41.5004 22.2504
2450467.51648 2124786.90645 22102312.3914 22102311.7304
48.2504 33.7504
-1308221.37146 -986260.71143 24324796.3834 24324794.1334
41.5004 23.2504
4046613.53547 3135039.72345 22192704.2814 22192704.9064
47.5004 31.5004
1139900.074 8 21348225.984
50.250
-3320668.781 8 21771329.008
49.500
15 3 21 14 50 0.0000000 0 10G11G18G24G01G04G28G22G13G15G17
884790.44146 295550.47343 23932229.4924 23932230.2234
39.0004 19.5004
833969.91447 264862.62943 23919408.7894 23919408.1254
42.5004 21.7504
-3559919.297 7 21795440.820
47.000
-1969222.145 7 24016775.188
42.750
15405.65646 24690.98444 24121721.8754 24121723.3014
41.7504 24.5004
2480479.09448 2148172.53945 22108023.6024 22108022.4924
49.2504 33.5004
-1370671.55546 -1034923.24243 24312912.6954 24312910.9344
40.0004 23.0004
4105905.28548 3181241.04745 22203987.4304 22203987.8094
48.2504 32.7504
1144573.621 8 21349115.531
50.000
-3407351.613 8 21754833.828
49.000
15 3 21 14 50 30.0000000 0 10G11G18G24G01G04G28G22G13G15G17
875231.28946 288101.79343 23930410.6414 23930410.8014
38.7504 20.0004
820945.12547 254713.43043 23916929.4144 23916929.7704
42.5004 22.2504
-3680487.164 7 21772497.305
47.750
-2045667.191 7 24002227.836
43.000
-10514.95647 4493.08043 24116790.1484 24116790.5314
42.0004 22.5004
2510707.81647 2171727.36745 22113776.0864 22113774.8754
47.5004 33.5004
-1432630.38746 -1083202.84444 24301122.4384 24301120.2664
41.7504 24.5004
4165502.69148 3227680.51245 22215328.3834 22215328.3834
48.5004 31.2504
1149751.297 8 21350100.961
50.500
-3493547.516 8 21738430.633
48.500
