Pingeresonants (0)

R=0 (takistus takistussalvel)

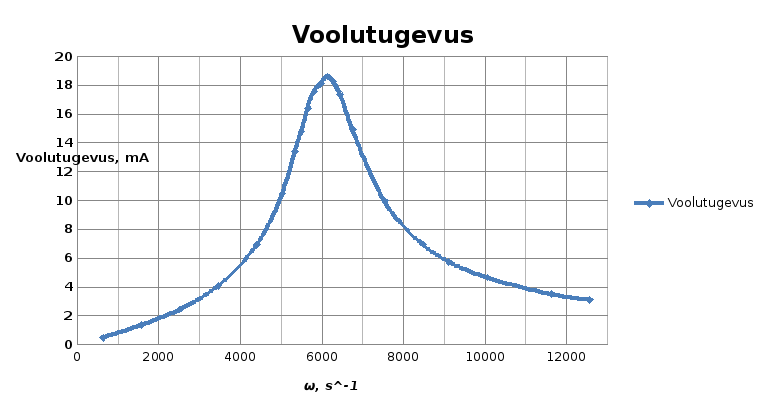

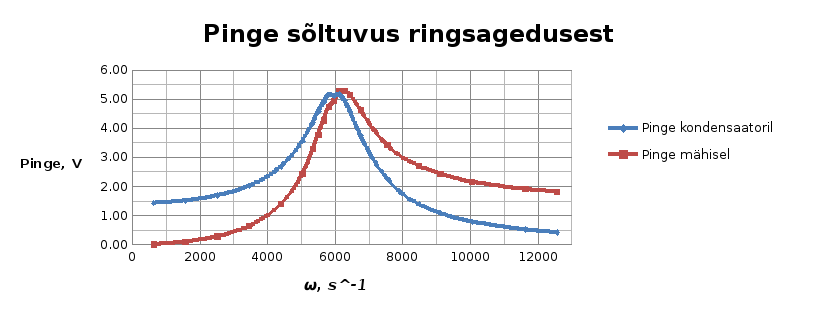

Jrk nr v, Hz ω=2*π*v, s^-1 Ie, mA UCe, V ULe, V
1 100 628 0.48 1.43 0.01 2 250 1571 1.36 1.51 0.10 3 400 2513 2.44 1.69 0.28 4 550 3456 4.08 2.02 0.65 5 700 4398 6.92 2.69 1.40 6 800 5027 10.48 3.56 2.42 7 850 5341 13.42 4.20 3.28 8 875 5498 14.82 4.58 3.78 9 900 5655 16.42 4.89 4.27 10 925 5812 17.6 5.15 4.73 11 950 5969 18.1 5.11 4.95 12 975 6126 18.62 5.17 5.27 13 1000 6283 18.25 4.94 5.28 14 1025 6440 17.4 4.59 5.15 15 1075 6754 14.95 3.76 4.63 16 1200 7540 9.98 2.26 3.42 17 1350 8482 6.95 1.39 2.71 18 1450 9111 5.76 1.08 2.43 19 1600 10053 4.66 0.79 2.16 20 1850 11624 3.5 0.52 1.91 21 2000 12566 3.11 0.42 1.82
R= 50 Ω (generaatori sisetakistus )
ωr= 6126 Hz resonantssagedus tabeli järgi (voolutugevus on max)
C= 0.00000059 F -> 0,59 μF
ω1= 5607 Hz
L= 0.045 H -> 45 mH
ω2= 6718 Hz
∆ω= ω2 - ω1 = 1111 Hz
5.5234477074
Q= ωr/∆ω = 5.5
Arvutuslikult
ωr= 1/ sqrt (L*C)
ωr= 6137 Hz
ωL= 1/sqrt((L*C)-(R^2*C^2)/2)
ωL= 6188 Hz
ωC= sqrt(1/(L*C)-R^2/(2*L^2)
ωC= 6087 Hz
0.00000059
0.000000015
34.6410161514
