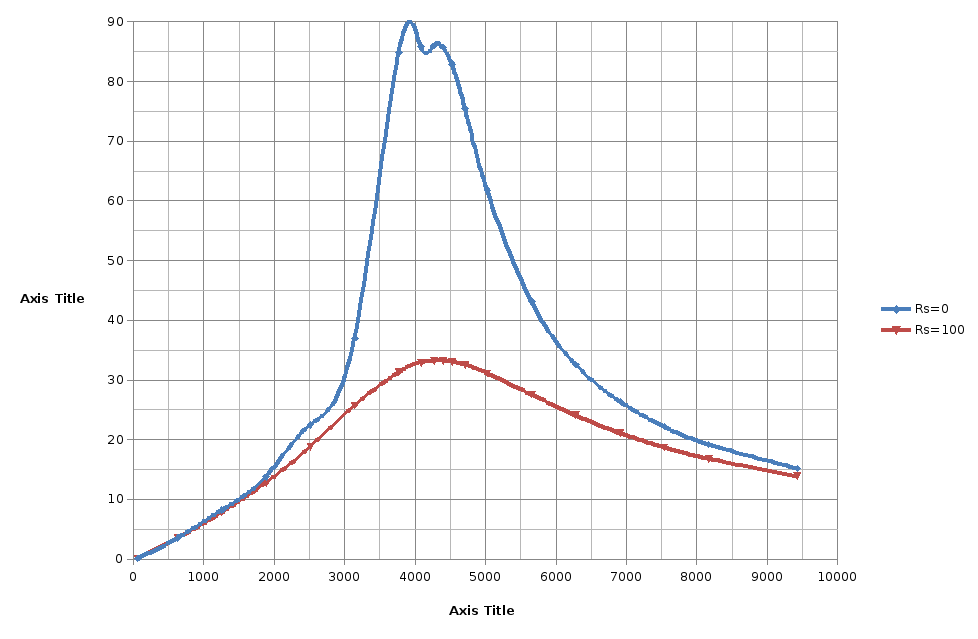

I=f(w)

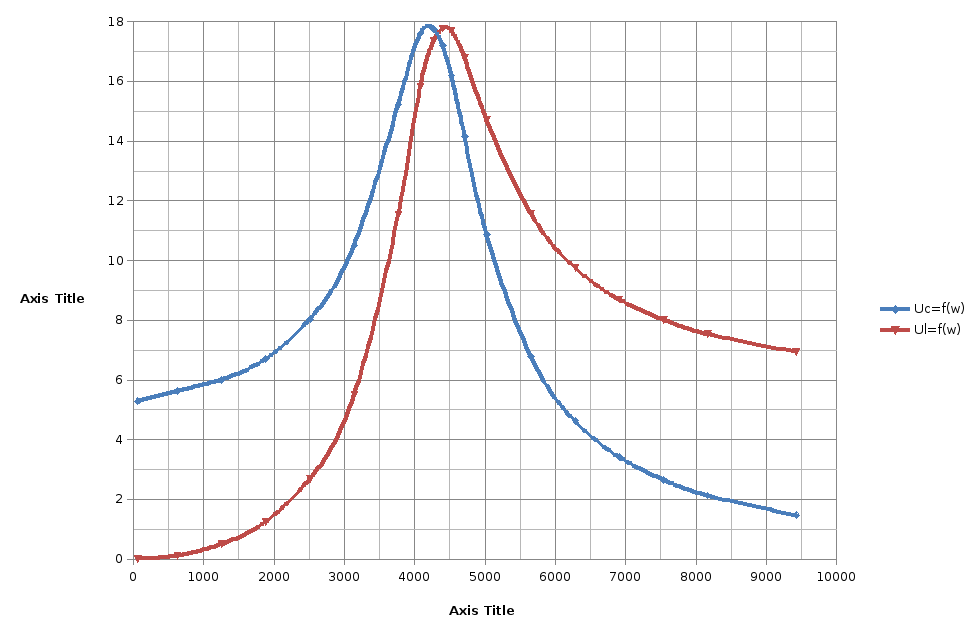

U=f(w)
Sheet1

Sheet 1: I=f(w) (2)

Sheet 2: I=f(w)

Sheet 3: U=f(w)

Sheet 4: Sheet1

γ ω Ie Uc UL Rs
10 62.8318530718 0.1 5.29 0.01 0
100 628.318530718 3.5 5.63 0.11
w1=
Rs=0

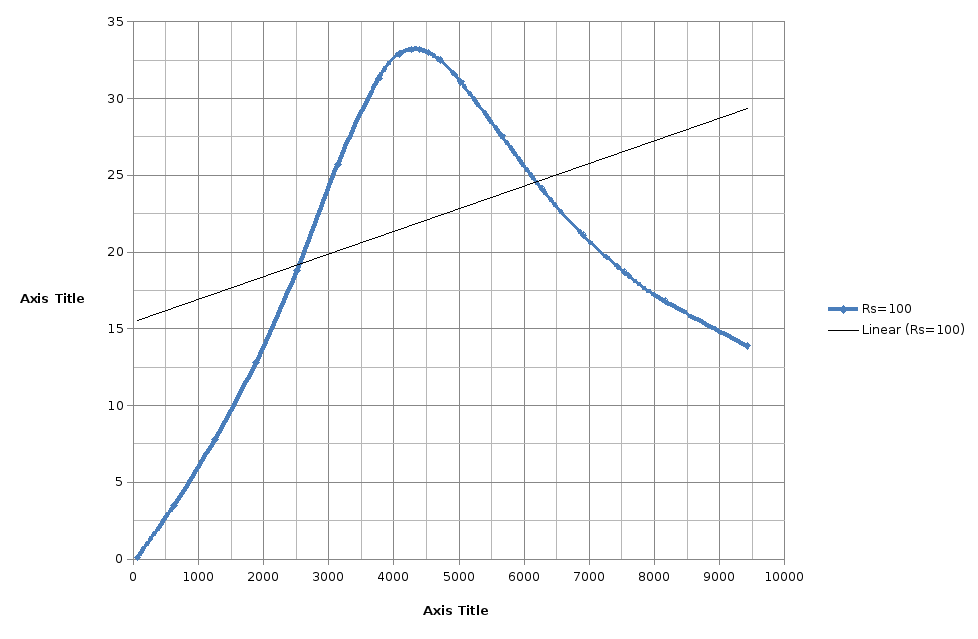

Rs=100
C 0.000001149 200 1256.6370614359 8.2 6.01 0.5
w2=
Graafikult
Graafikult
L 0.045 300 1884.9555921539 13.8 6.71 1.25
5026
6283
R0 50 400 2513.2741228718 22.5 8.04 2.69
3141
2500
wr 4397.7823177574 500 3141.5926535898 37 10.52 5.5
dw 1885
dw 3783
600 3769.9111843078 84.8 15.22 11.53
I/sqrt2 60.811183182
650 4084.0704496667 85.8 17.61 15.82
Q=w/dw 2.3332783634
Q=dw/w 1.1626301124
680 4272.5660088821 86 17.75 17.35
700 4398.2297150257 85.7 17.21 17.77
Arvutatult
Arvutatult
720 4523.8934211693 82.9 16.19 17.69
wr 4397.7823177574
wr
750 4712.3889803847 75.5 14.17 16.8
800 5026.5482457437 61.8 10.88 14.72
900 5654.8667764616 43.2 6.79 11.58
1000 6283.1853071796 32.6 4.63 9.76
1100 6911.5038378976 26.4 3.42 8.7
1200 7539.8223686155 22.2 2.66 8.02
1300 8168.1408993335 19.2 2.13 7.54
1500 9424.7779607694 15.2 1.47 6.94
γ ω Ie Uc UL Rs
10 62.8318530718 0.1
100
100 628.318530718 3.5
200 1256.6370614359 7.8
300 1884.9555921539 12.8
400 2513.2741228718 18.8
500 3141.5926535898 25.7
I/sqrt2= 23.4759451354
600 3769.9111843078 31.3
650 4084.0704496667 32.9
680 4272.5660088821 33.2
700 4398.2297150257 33.2
720 4523.8934211693 33
750 4712.3889803847 32.5
800 5026.5482457437 31.1
900 5654.8667764616 27.6
1000 6283.1853071796 24.1
1100 6911.5038378976 21.1
1200 7539.8223686155 18.7
1300 8168.1408993335 16.8
1500 9424.7779607694 13.9
